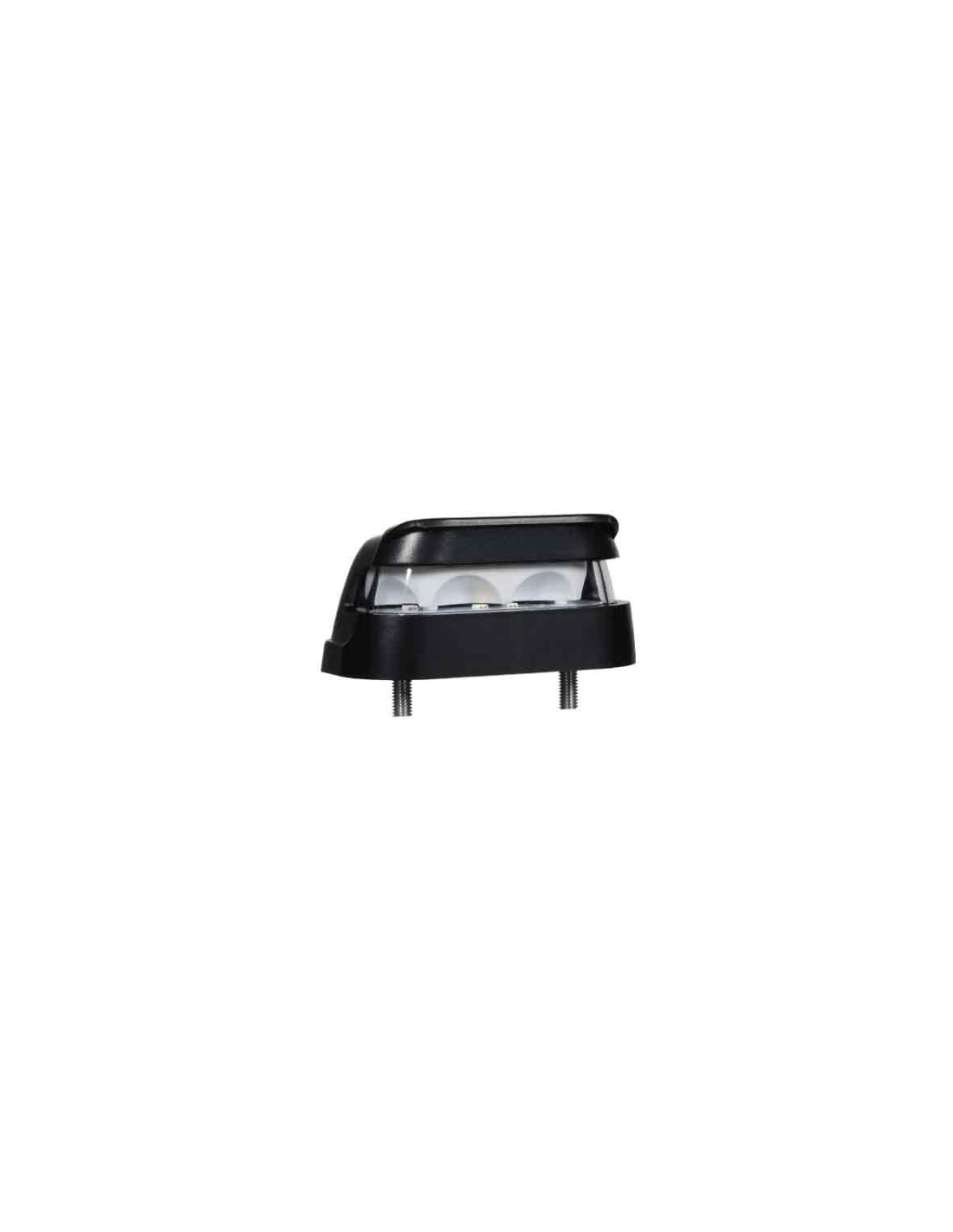

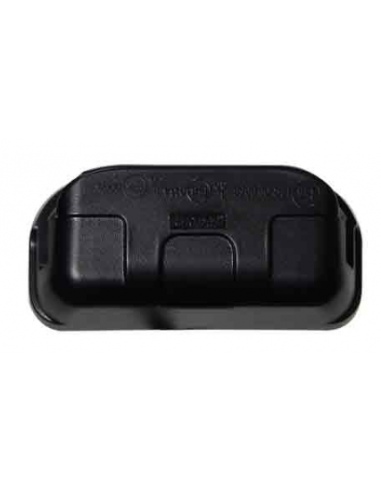

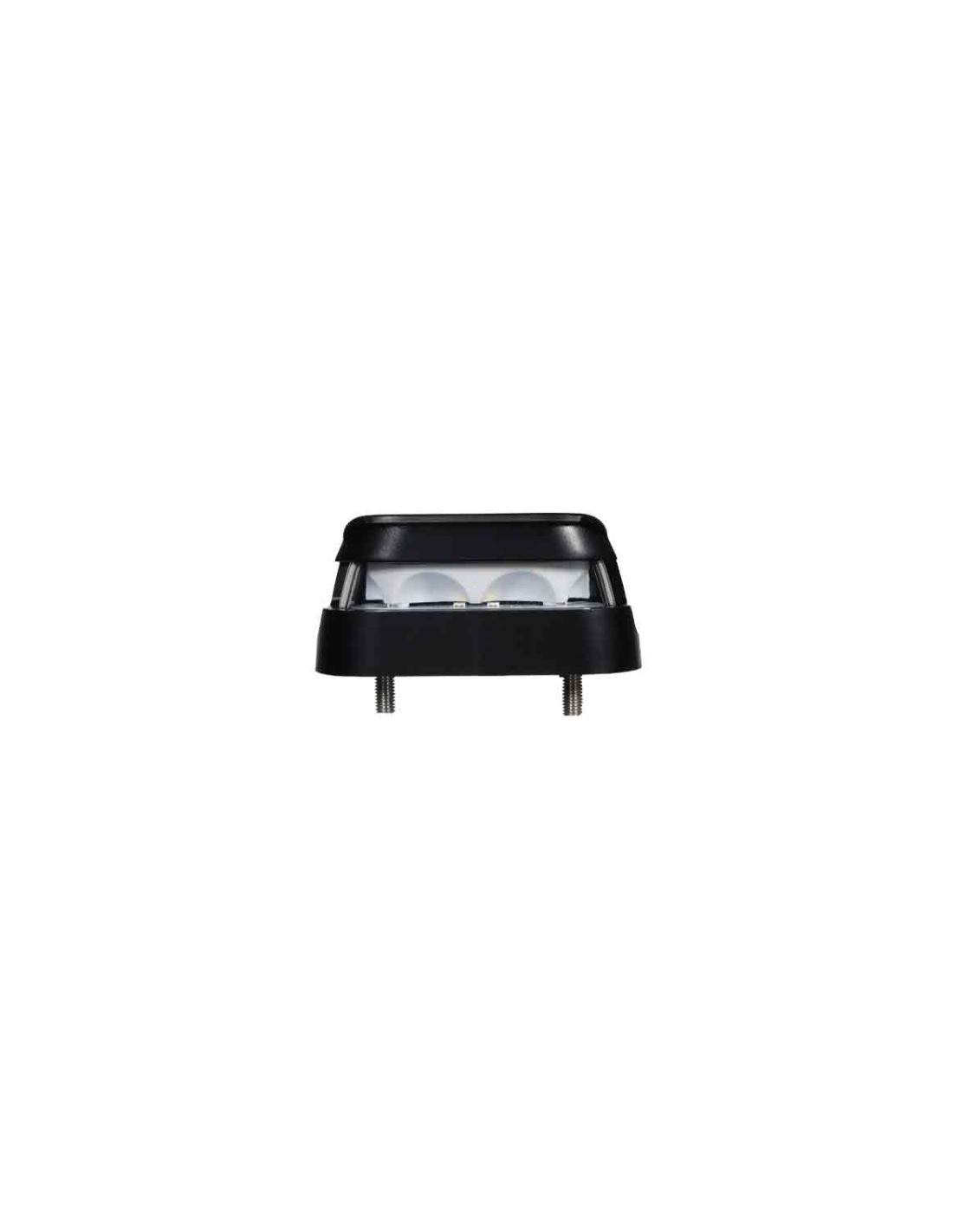

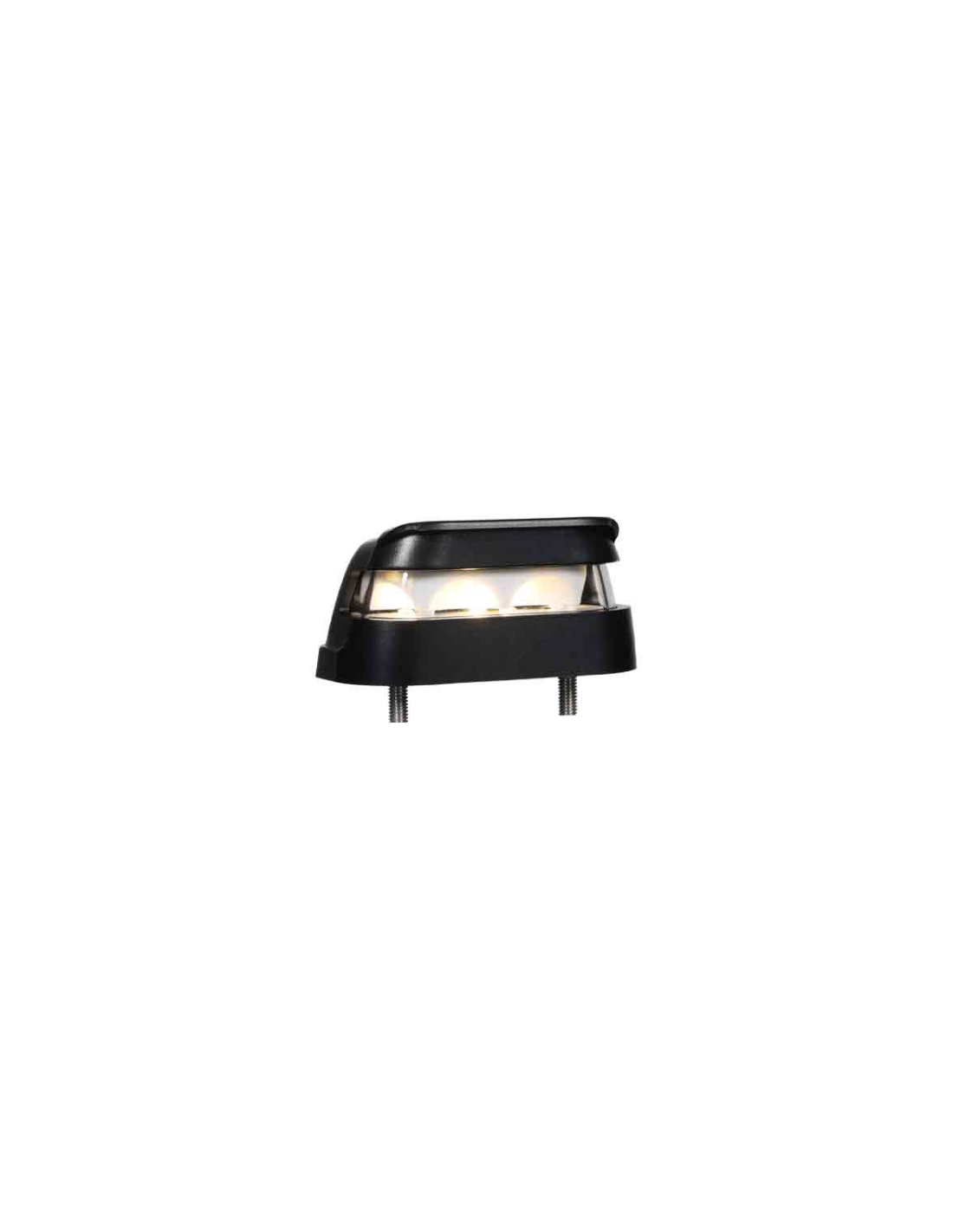

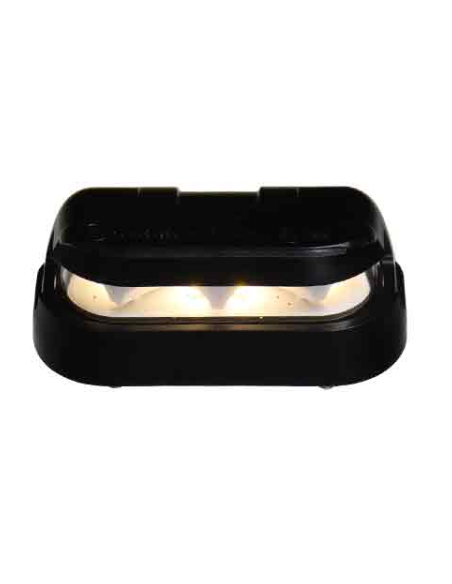

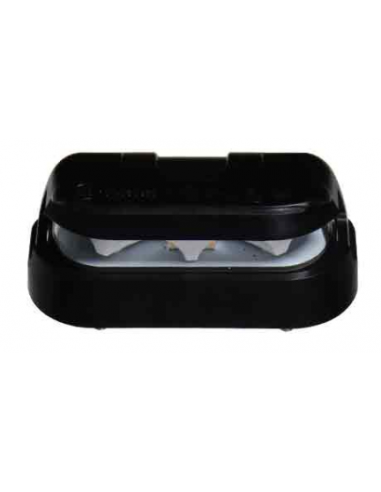

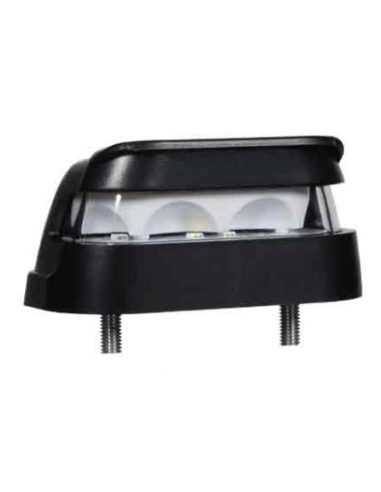

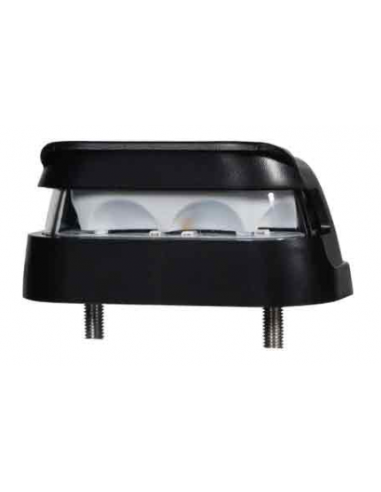

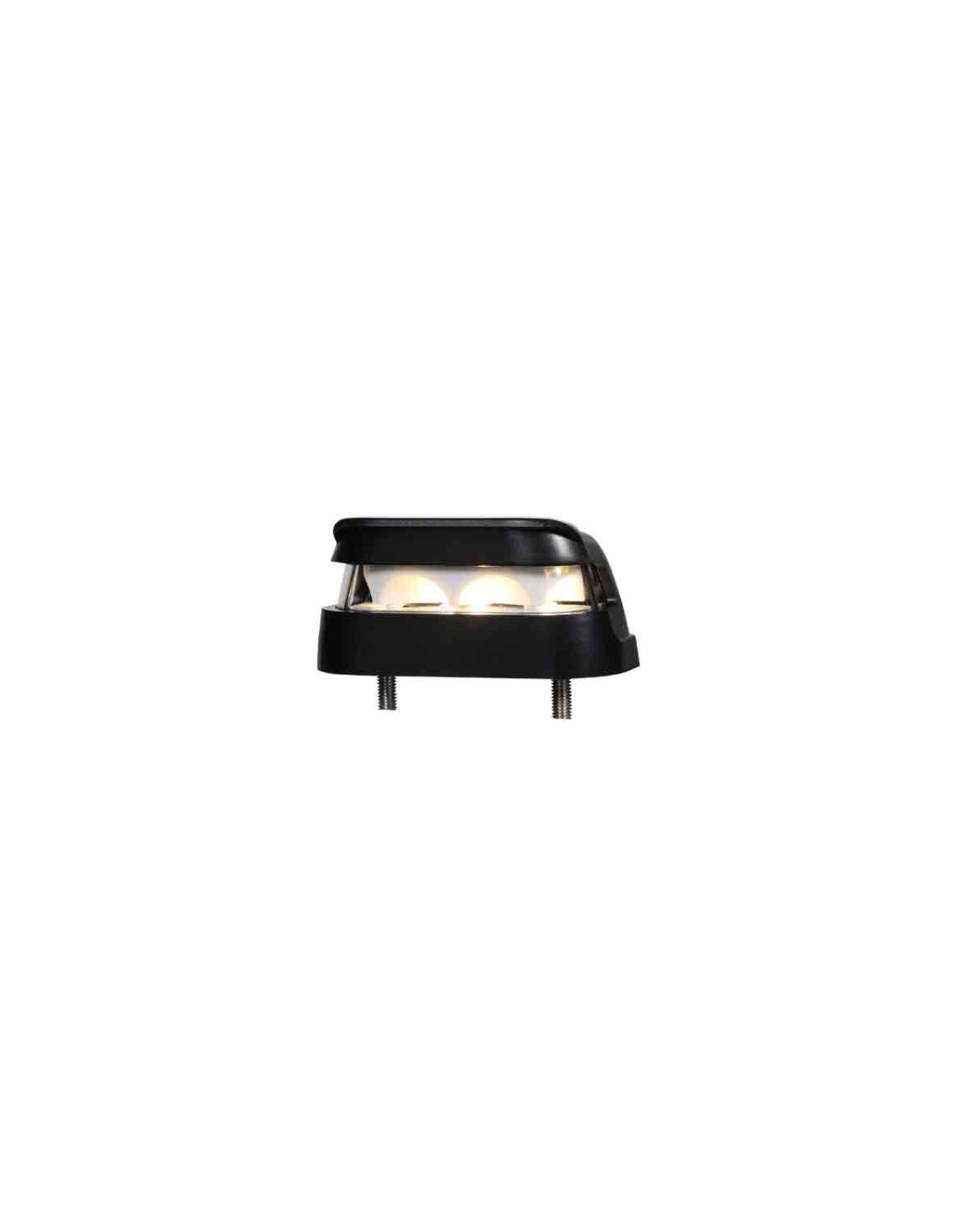

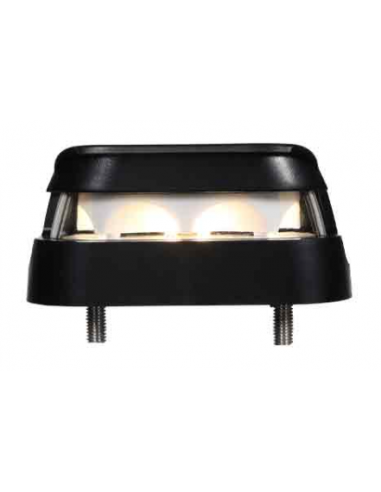

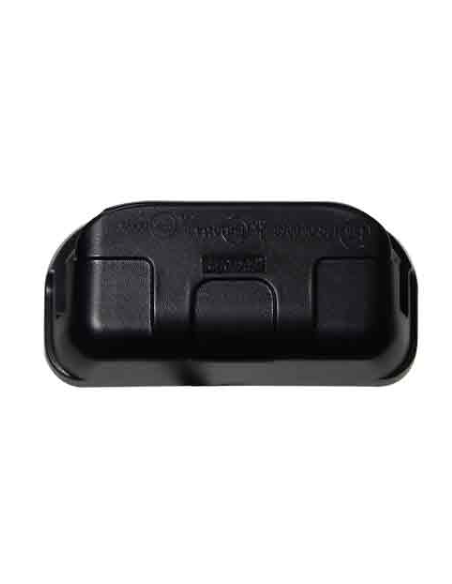

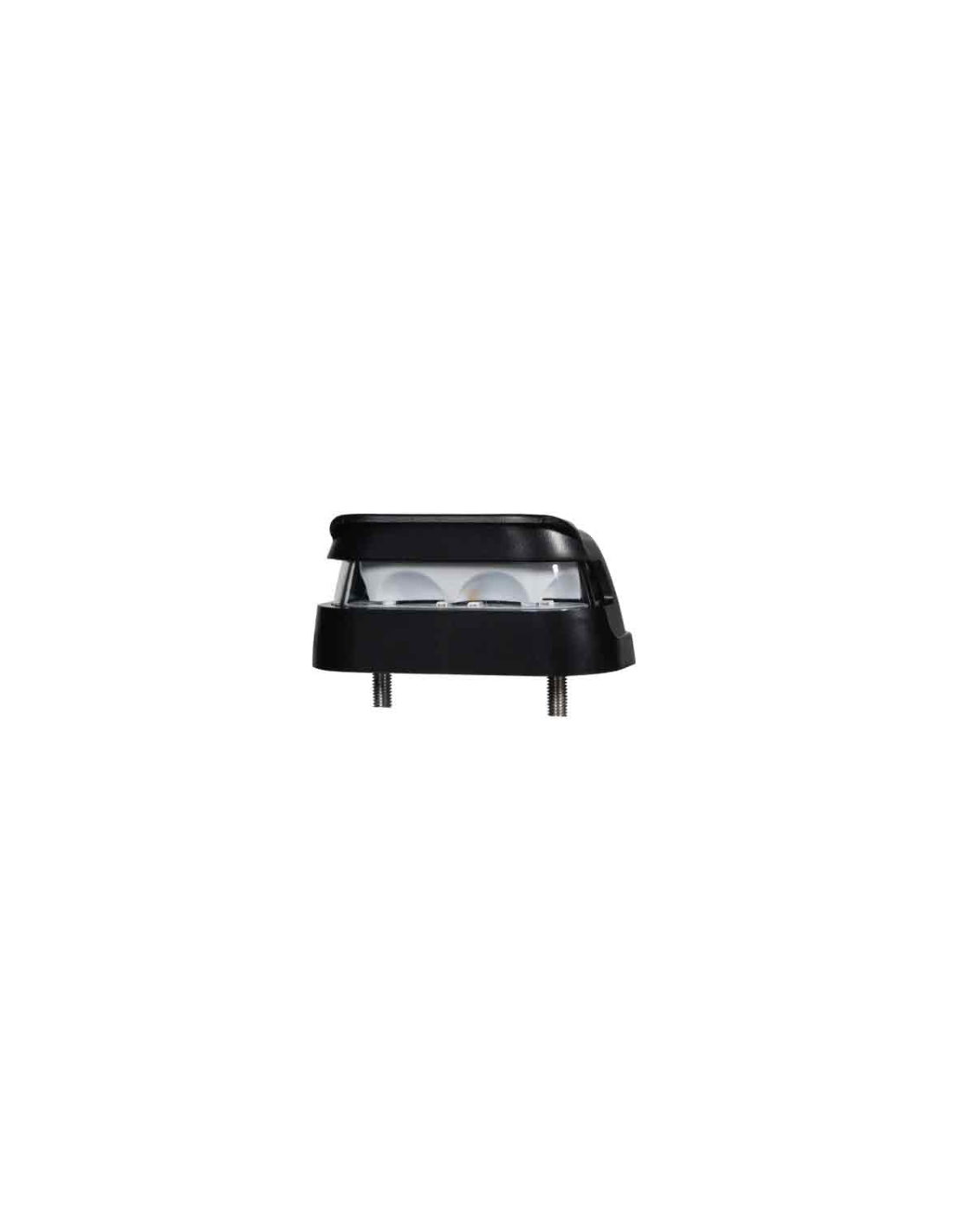

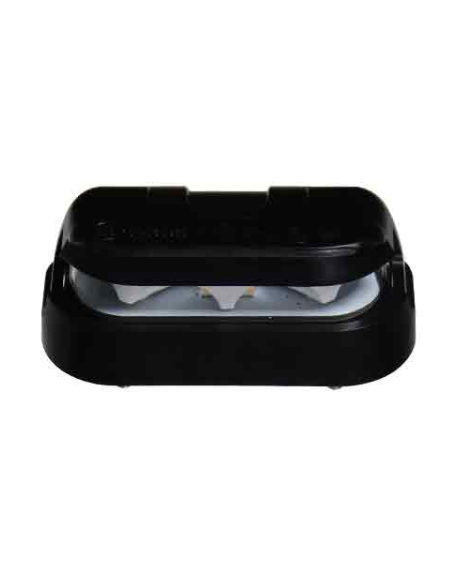

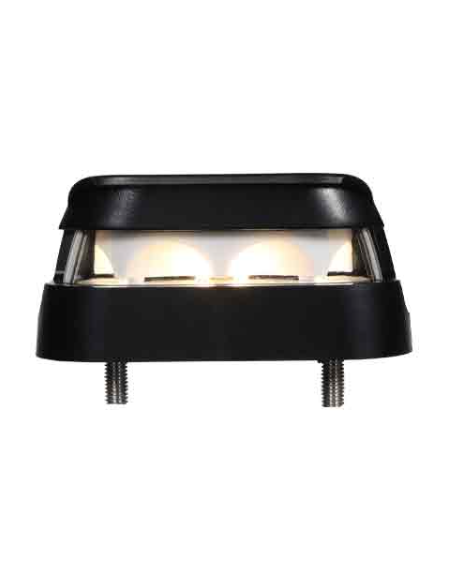

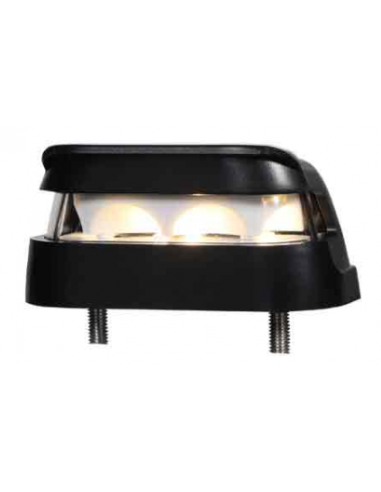

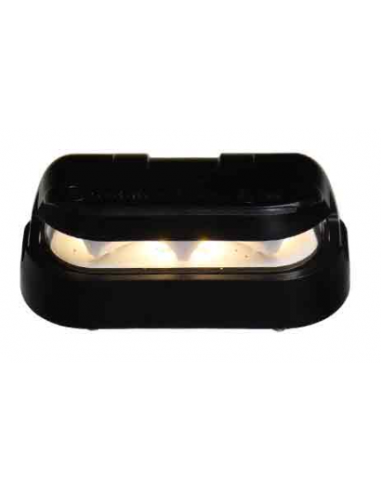

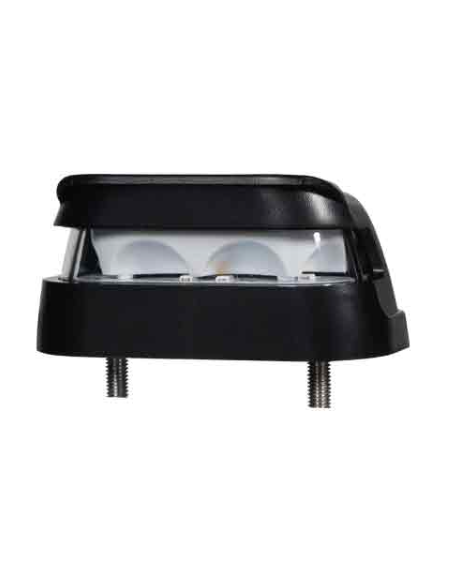

The Lucidity 26807 is an ECE-approved LED number plate light with IP67 protection, suitable for 12V and 24V systems. A single unit fully illuminates a 520 × 120 mm registration plate on your truck, trailer, tractor, caravan or motorhome. Direct surface installation with integrated stud mounting and 500 mm cable with PRS connector, ready to connect.
Vehicle compatibility
- Truck — tractor unit, rigid truck and light commercial vehicle
- Trailer — car trailer, platform trailer and agricultural trailer
- Semi-trailer — industrial and logistics applications
- Caravan — caravan and motorhome
Compatible with any industrial, leisure or agricultural vehicle operating on 12V or 24V DC electrical systems. No adapter or additional resistor required.
Main features of the LED number plate light
- Single unit fully illuminates a standard 520 × 120 mm plate
- ECE R10 and EMC approved — fully compliant for vehicle road inspection
- IP67-rated — waterproof and dustproof protection
- High-power SMD LED technology — long service life, zero maintenance
- Suitable for 12V and 24V DC systems
- No bulb or lens replacement — permanent sealed design
- Vibration and impact resistant — ideal for intensive road use

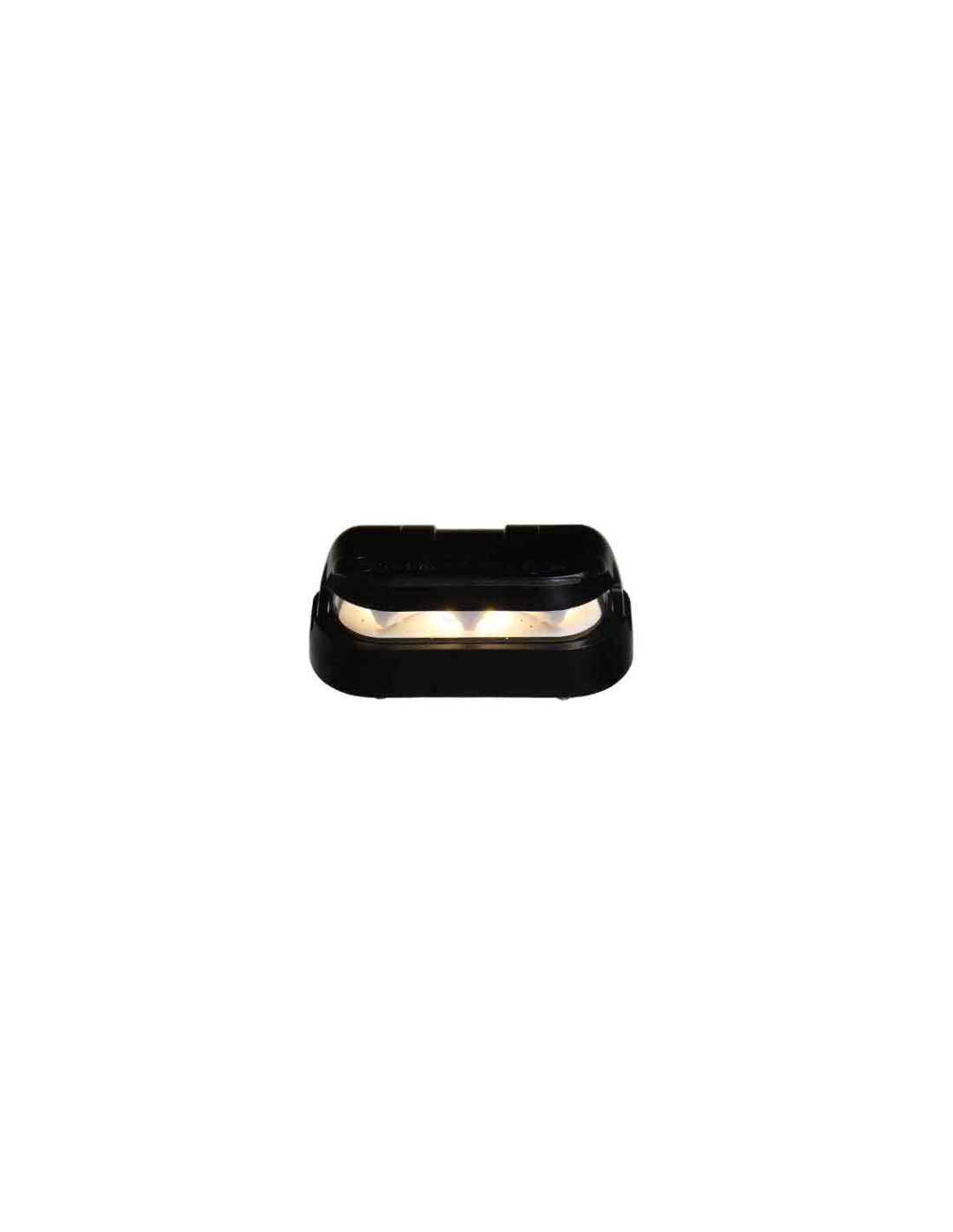

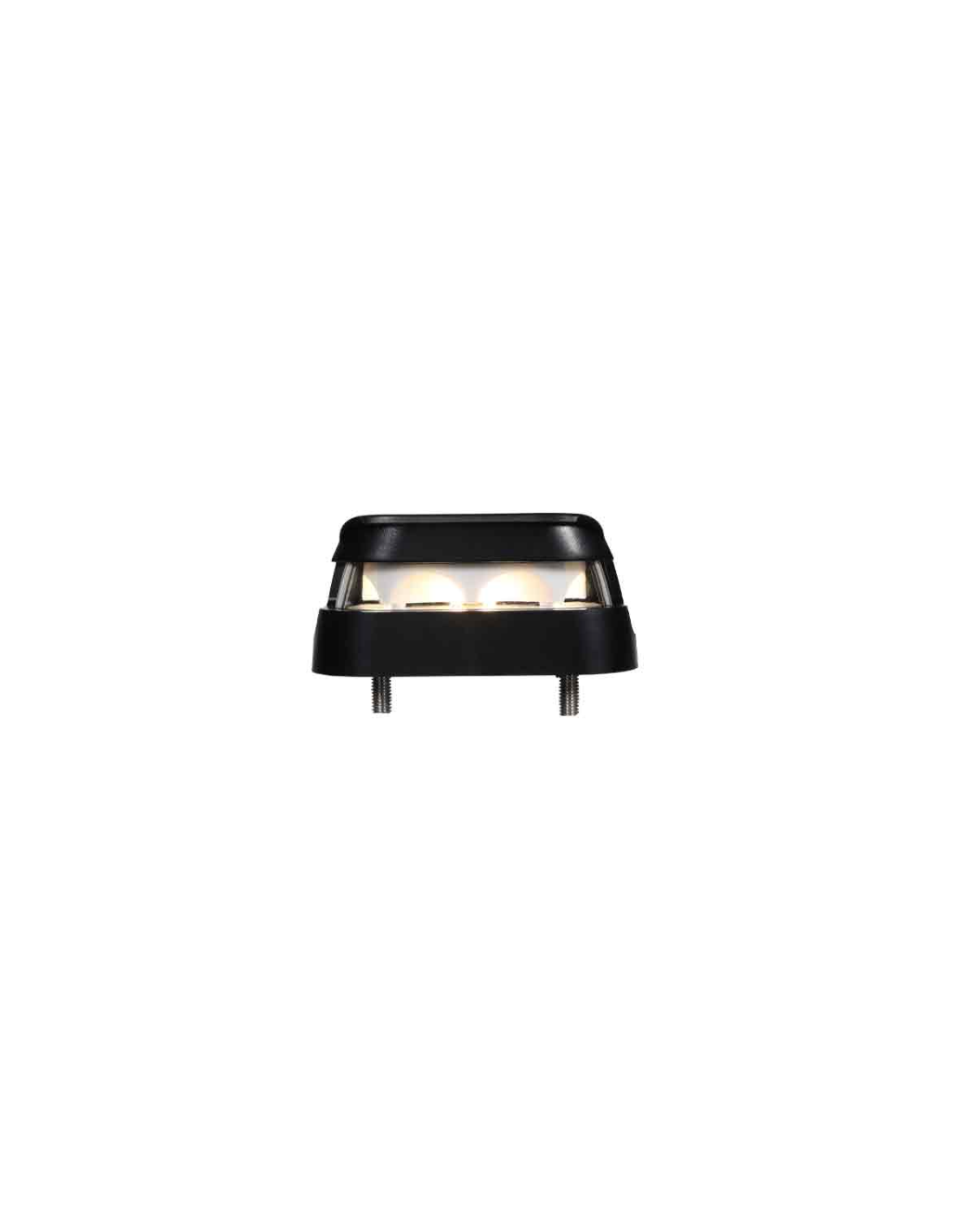

- Neutral white 5000K light output — maximum plate visibility
Technical specifications
| Manufacturer reference | Lucidity 26807 |
|---|---|
| Voltage | 12 / 24V DC |
| Protection rating | IP67 |
| Approval | ECE | EMC (European type approval) |

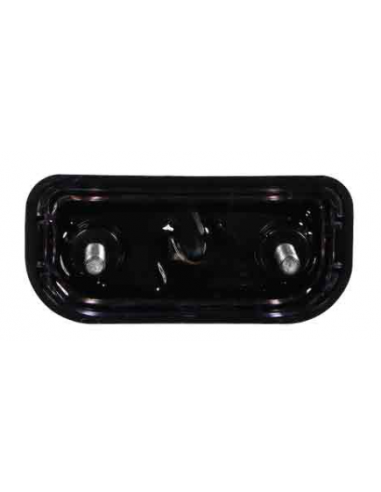

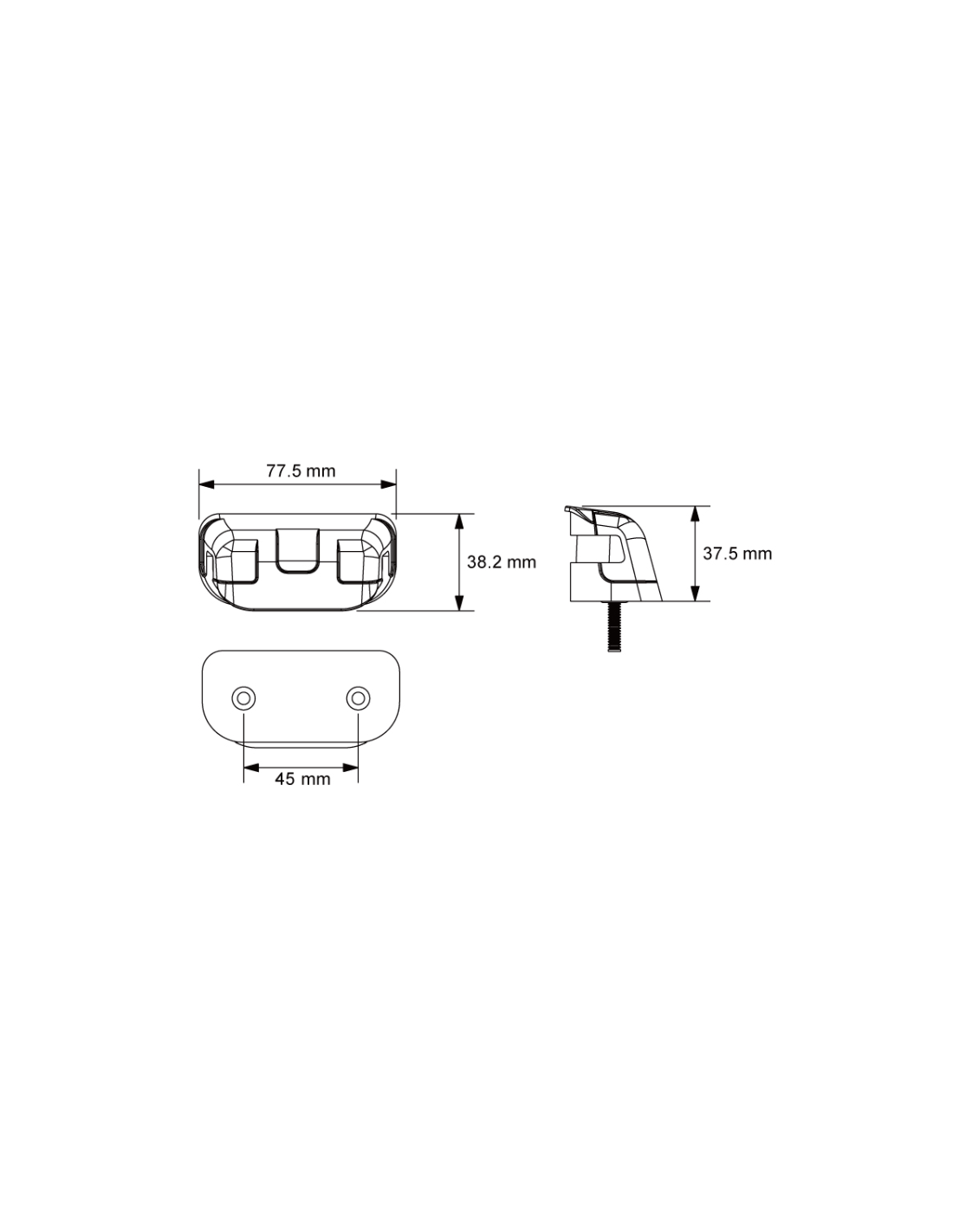

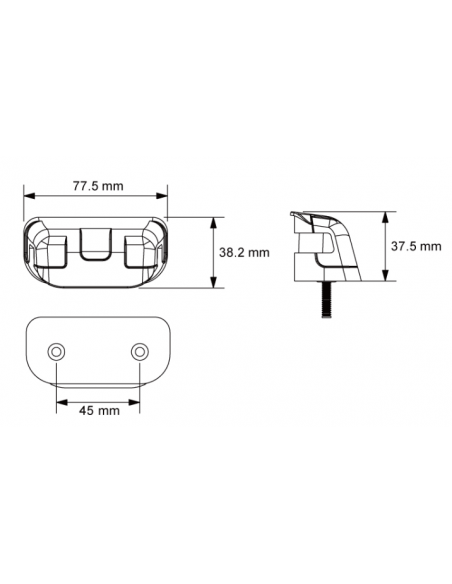

| Mounting type | Surface stud mounting |

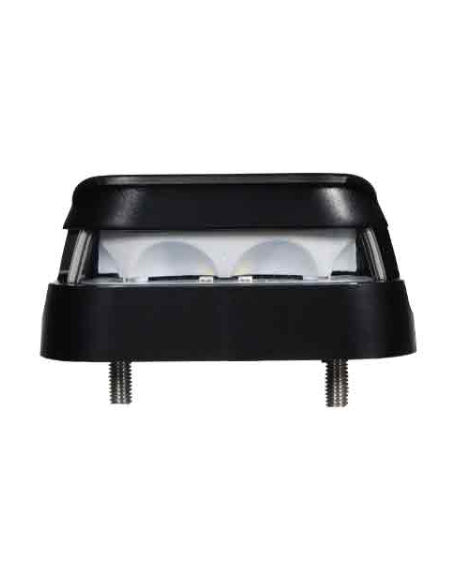

| Connection | 500 mm cable + PRS connector (2-core) |
| Illuminated plate size | 520 × 120 mm (single unit sufficient) |
| Light colour | Neutral white 5000K |
| Technology | High-power SMD LED |
| Package contents | Light unit + 2 screws + 2 nuts + 2 washers + 500 mm cable with PRS connector |
Easy installation — surface mounting with complete kit included
The Lucidity 26807 includes everything required for installation: screws, nuts, washers and a 500 mm cable with pre-fitted PRS connector, ready to plug into the vehicle’s existing wiring.

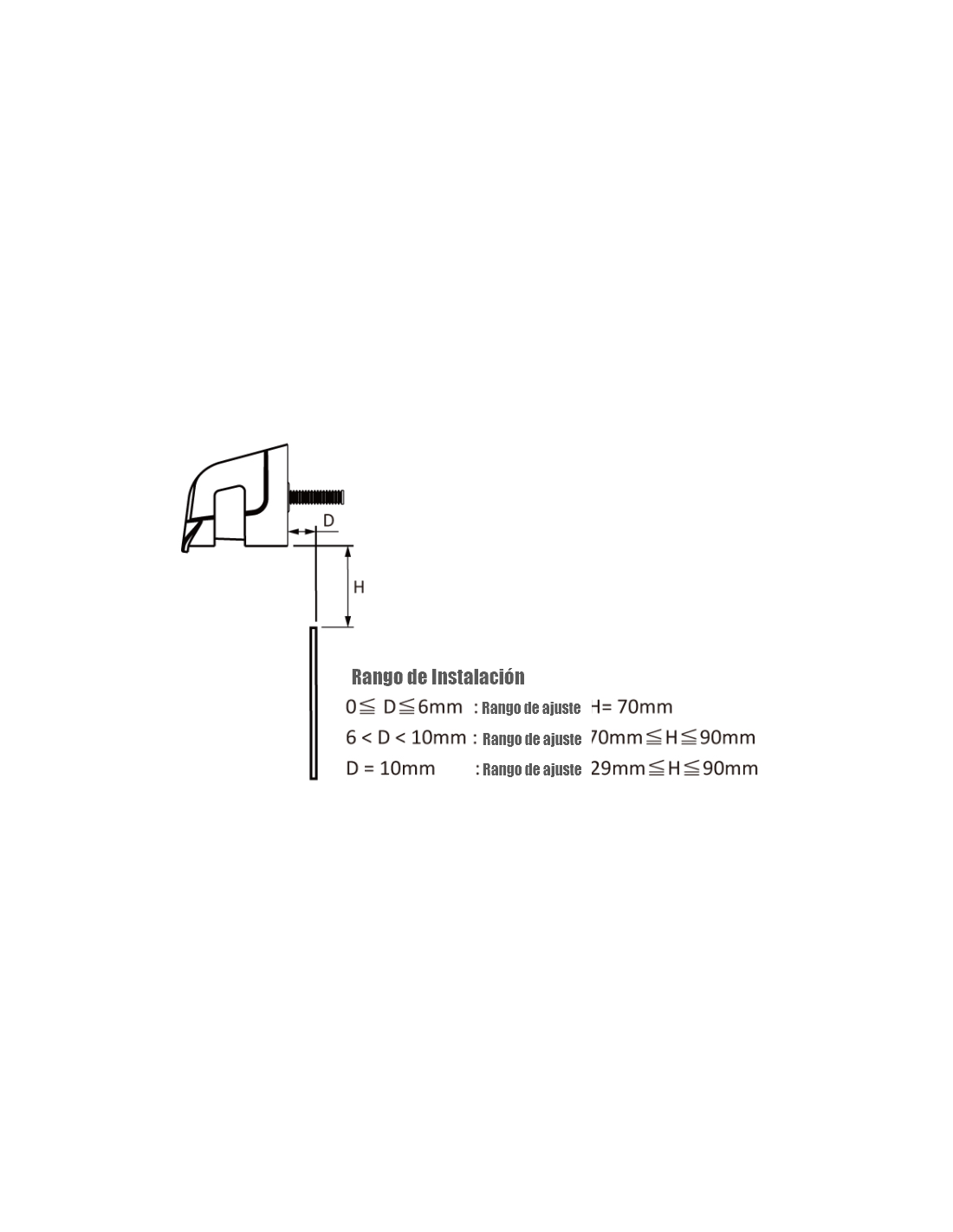

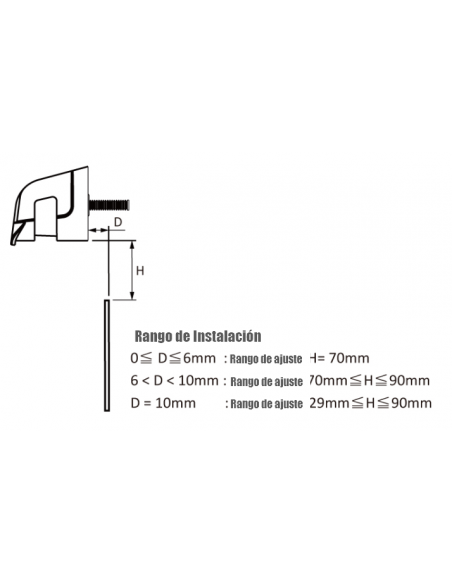

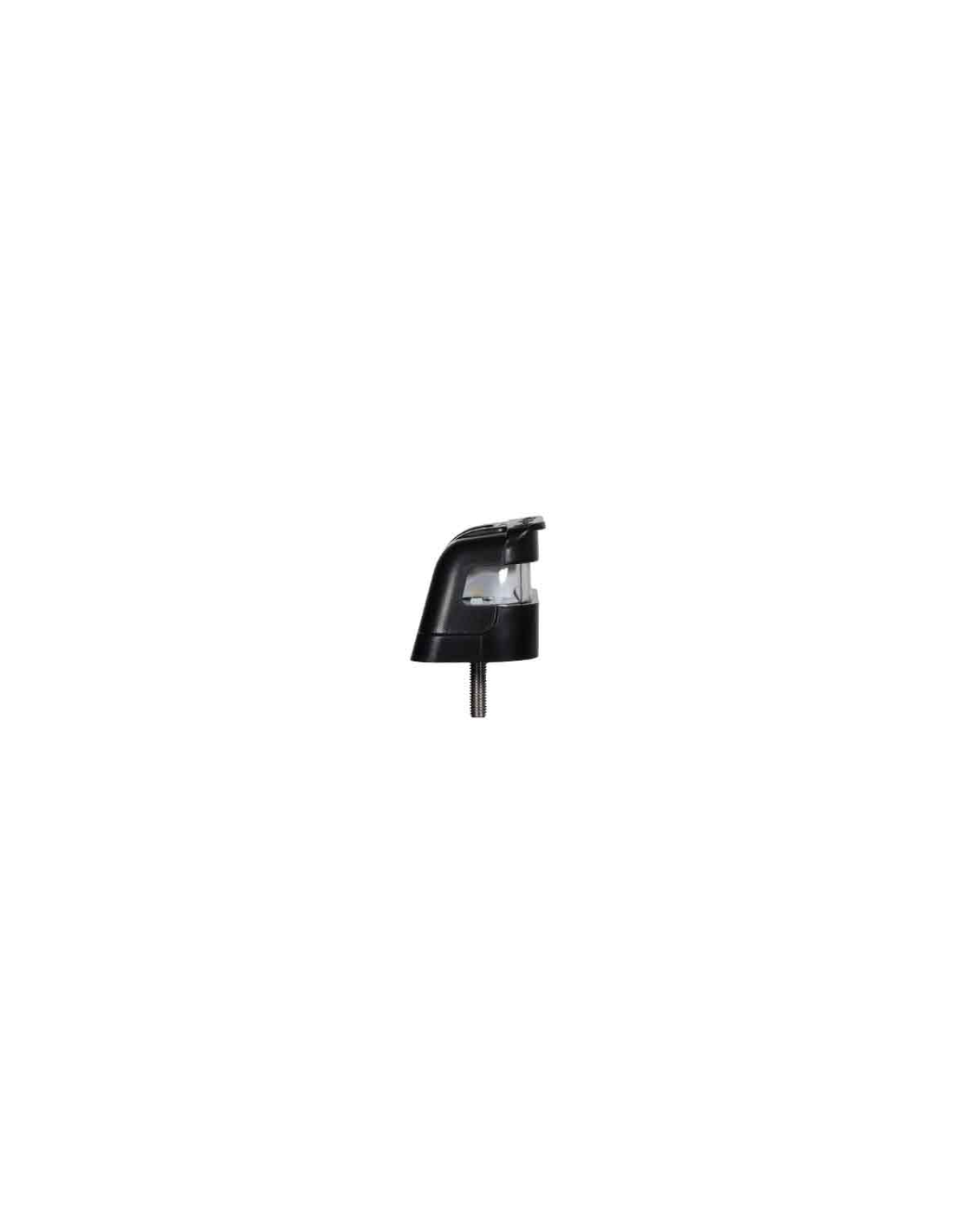

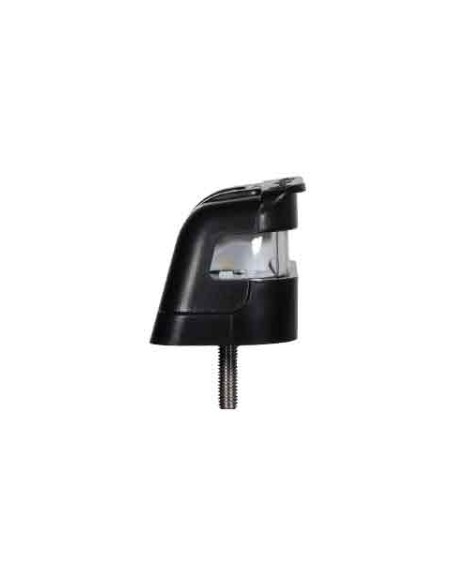

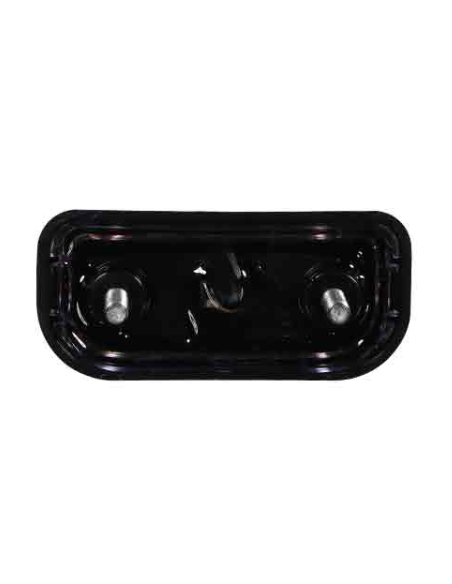

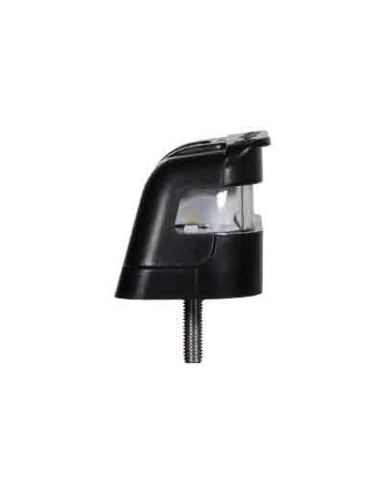

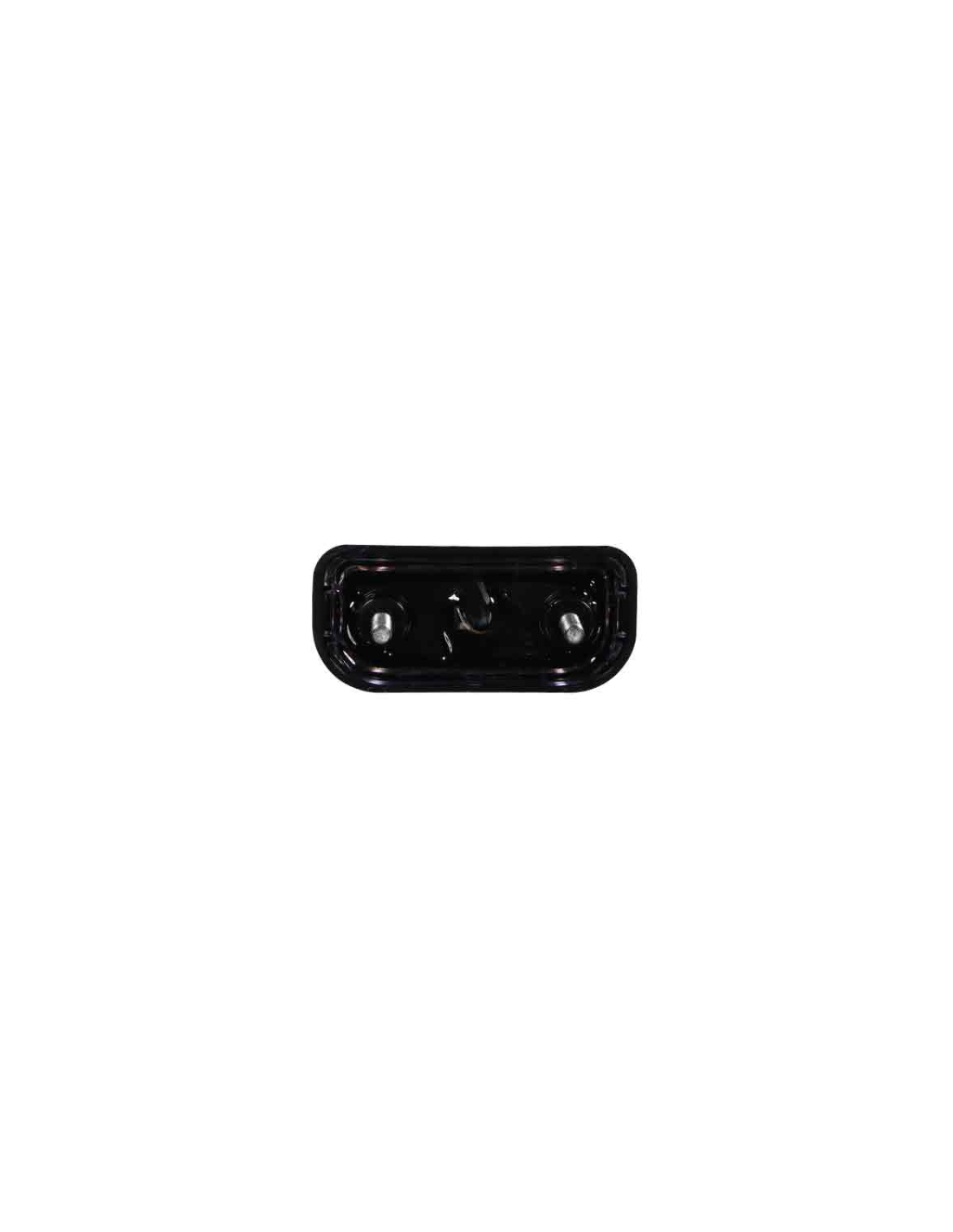

Surface stud mounting allows secure and level installation on any flat surface. Thanks to its vertical mounting design, a single unit provides full and uniform illumination of the entire plate, reducing installation time and cost.
ECE approval and regulatory compliance — fully road legal
This LED number plate light is ECE and EMC approved, meeting all European legal requirements for registration plate illumination on industrial, leisure and agricultural vehicles. It can be installed on trucks, trailers, semi-trailers, caravans and motorhomes with full legal compliance for road use.
As official Lucidity distributors in Spain, we guarantee genuine factory products supplied with full technical documentation and valid European approval.
Frequently asked questions
Do I need one or two units?

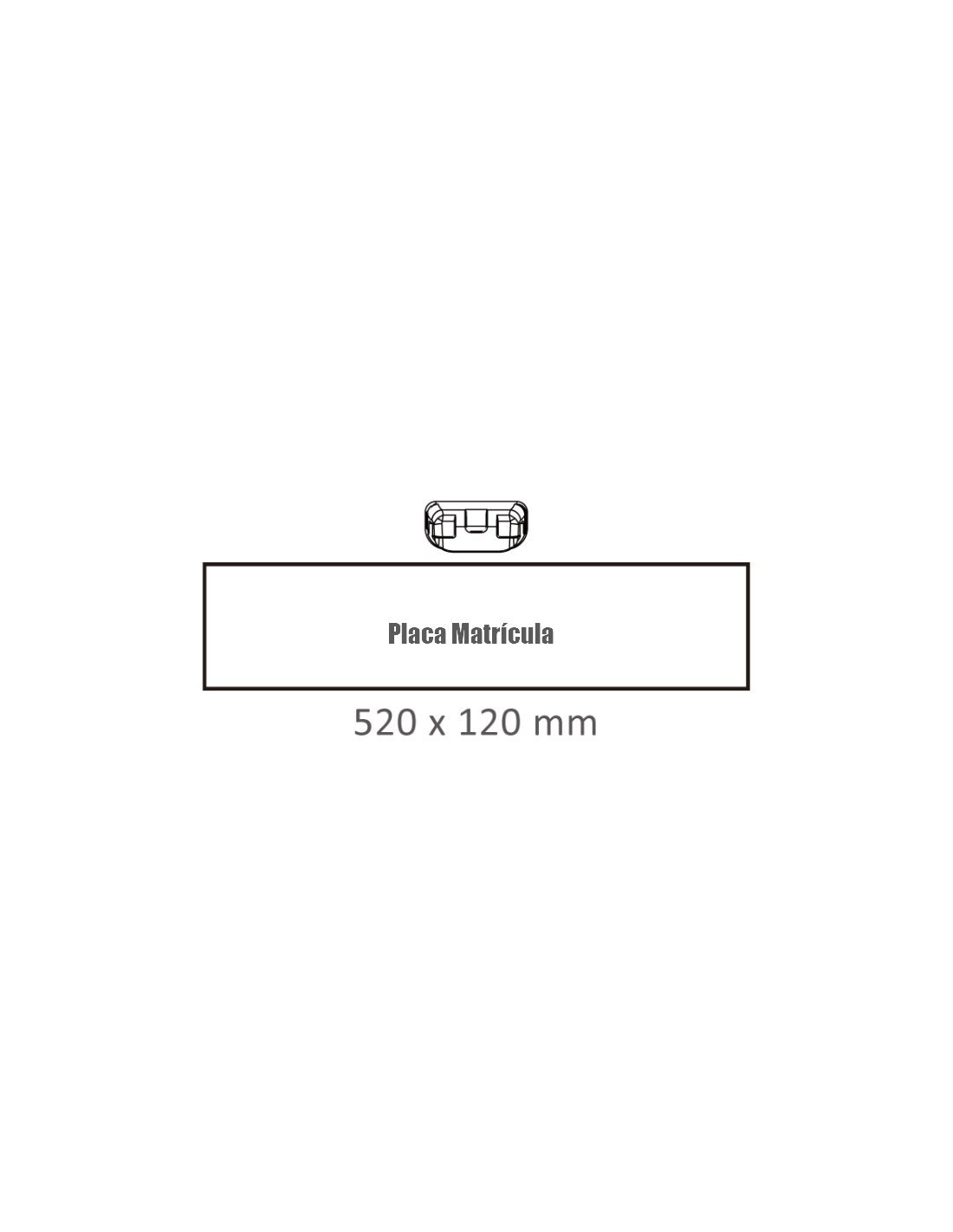

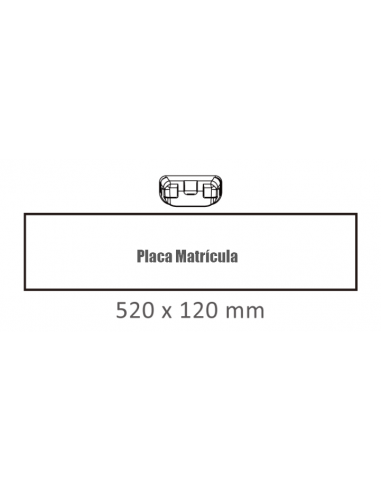

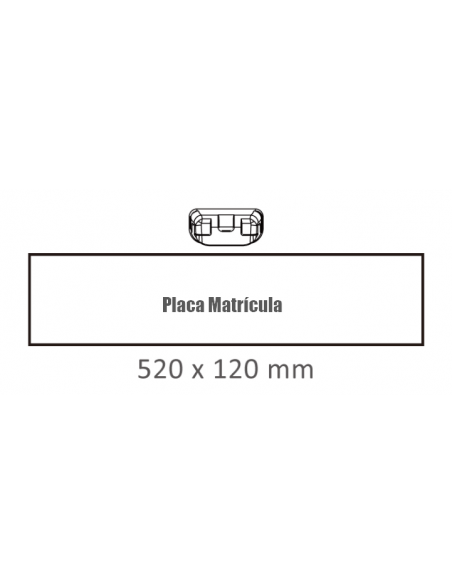

One Lucidity 26807 unit is sufficient to illuminate a standard 520 × 120 mm plate, which is the official truck and trailer plate size in Spain and across Europe. The central vertical mounting design ensures uniform light distribution across the entire plate surface.
Is this LED number plate light road legal?
Yes. The Lucidity 26807 is ECE and EMC approved, complying with all European legal requirements for registration plate lighting.
Is it compatible with 24V truck systems?
Yes. The unit is suitable for both 12V (car trailers, caravans, motorhomes) and 24V (trucks, semi-trailers and industrial vehicles). No adapter or additional resistor is required.
Does it require bulb replacement or maintenance?
No. SMD LED technology offers tens of thousands of operating hours with zero maintenance. No bulb or lens replacement is required.
What is included in the package?
The package includes: 1 LED number plate light, 2 screws, 2 nuts, 2 washers and 500 mm cable with PRS connector (2-core square cable compatible). Everything required for immediate installation.
