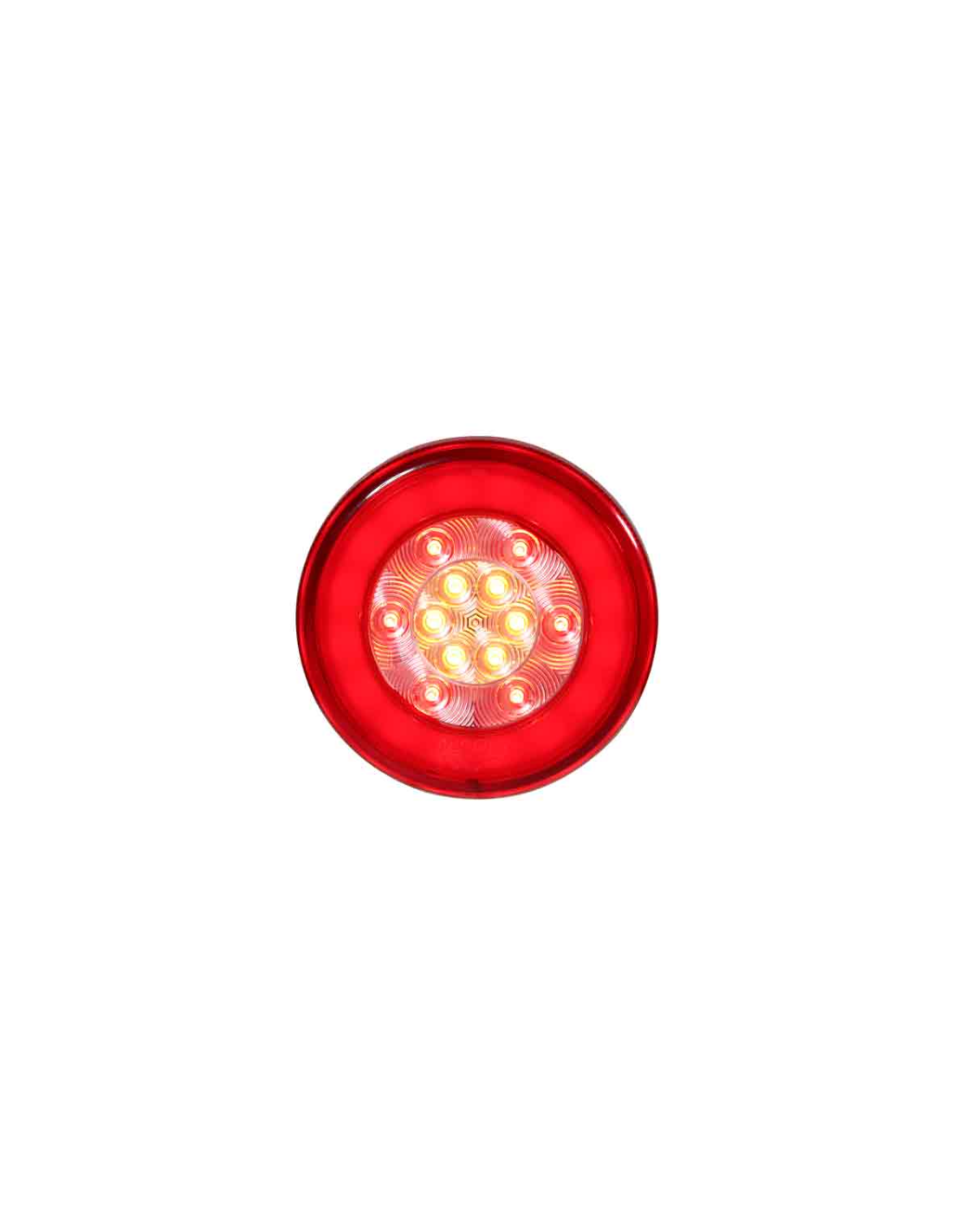

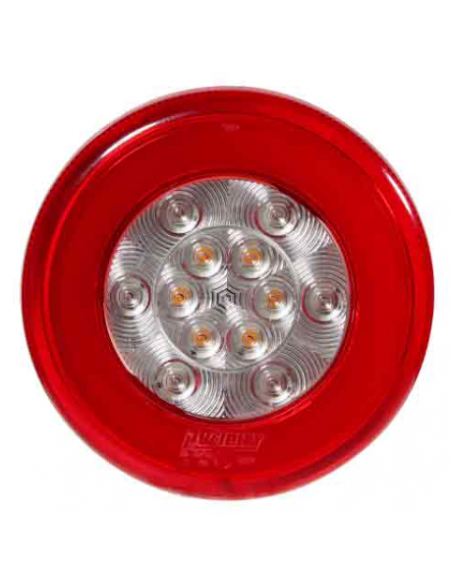

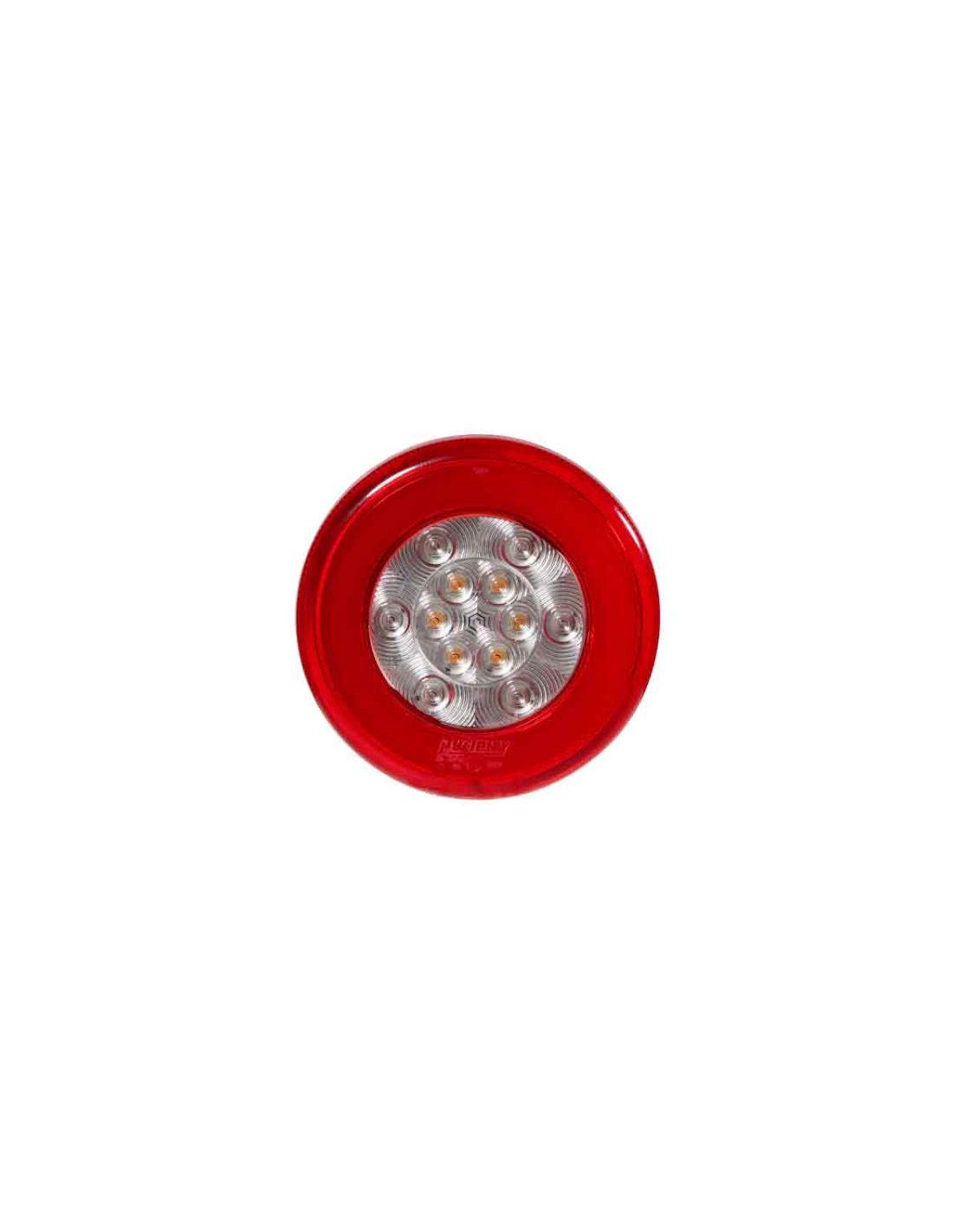

The Lucidity Glo Trac 26043-1 is a round ECE-approved LED rear light with 3 functions (Neon-effect position, stop and indicator), IP67 protection, and suitable for 12V and 24V systems. Its slim-profile housing makes it ideal for trucks, trailers, semi-trailers, caravans and motorhomes. Surface-mounted installation with 230 mm cable included.
Vehicle compatibility
- Truck — tractor unit, rigid truck and light commercial vehicle
- Trailer — car trailer, platform trailer, tipper trailer and agricultural trailer
- Semi-trailer — industrial and logistics applications
- Caravan and motorhome — leisure vehicles
Compatible with any vehicle operating on 12V to 24V DC electrical systems. No adapter or additional resistor required.

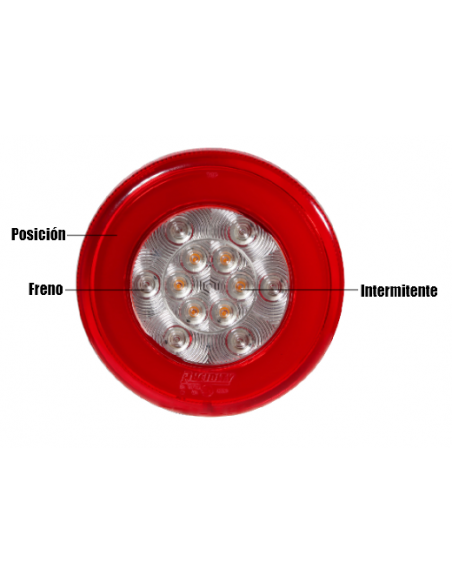

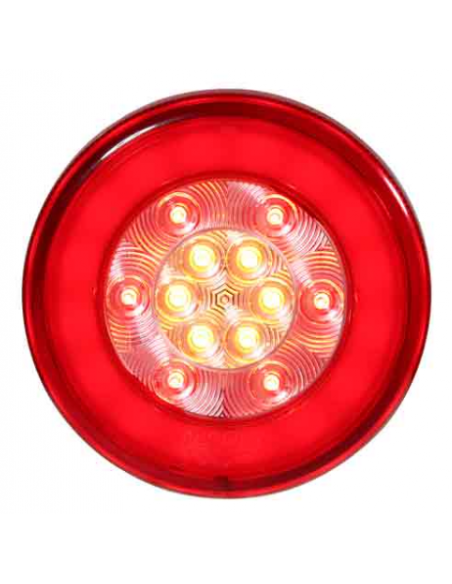

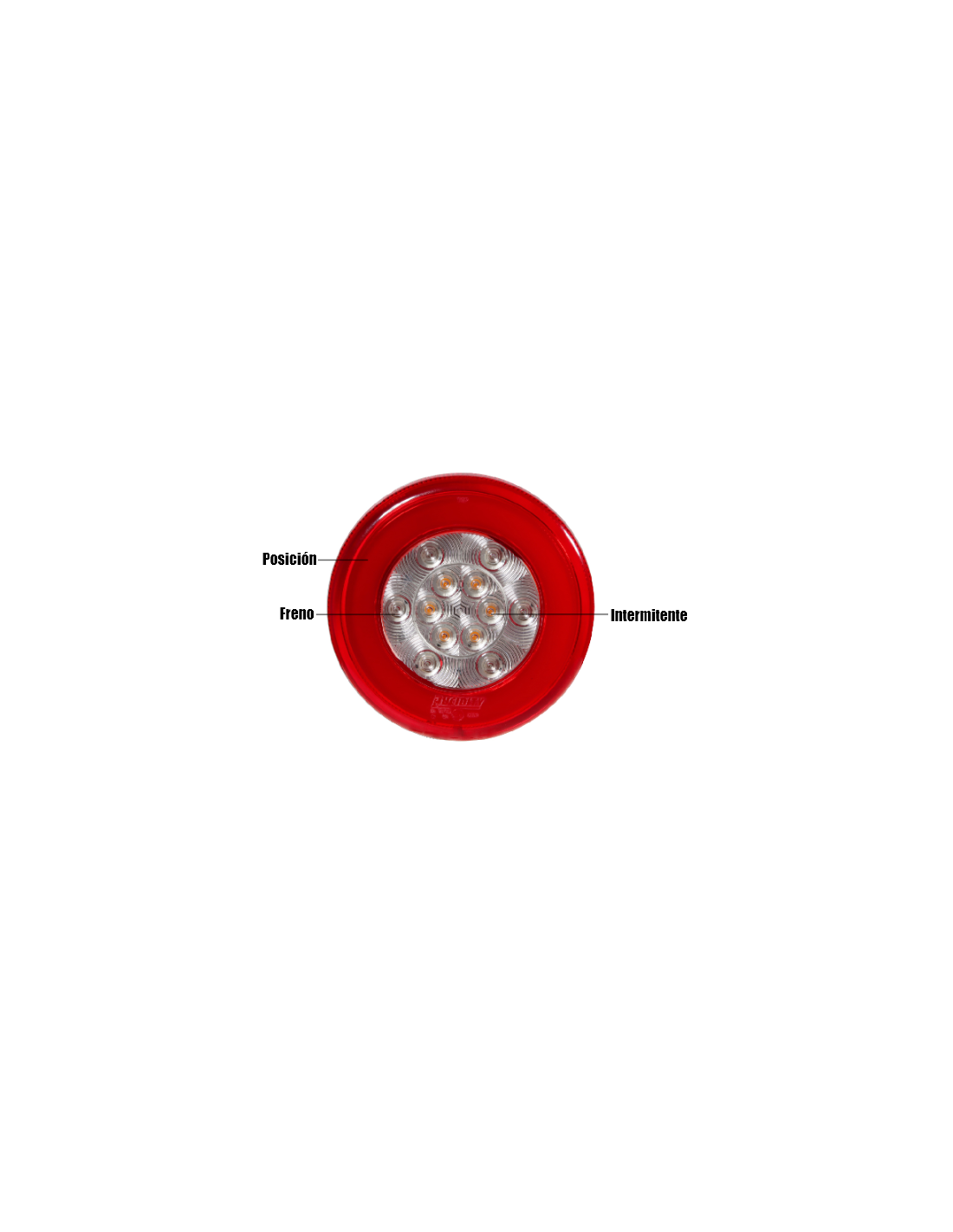

3 LED functions with Neon-effect: position, stop and indicator
- Neon-effect position light — uniform and continuous illumination for maximum daytime and nighttime visibility. Power consumption: 12V = 1.5W / 24V = 3.0W.
- Stop light — clear and fast braking signal for enhanced road safety. Power consumption: 12V = 2.4W / 24V = 4.8W.
- Indicator — ECE-compliant directional signalling.
If you require rear fog and reverse functions, refer to the complementary model Lucidity 26043-2, designed to be installed alongside this unit to complete rear lighting configuration. Take a look to the 26043-2 lamp.
Main features of the Glo Trac round LED rear light

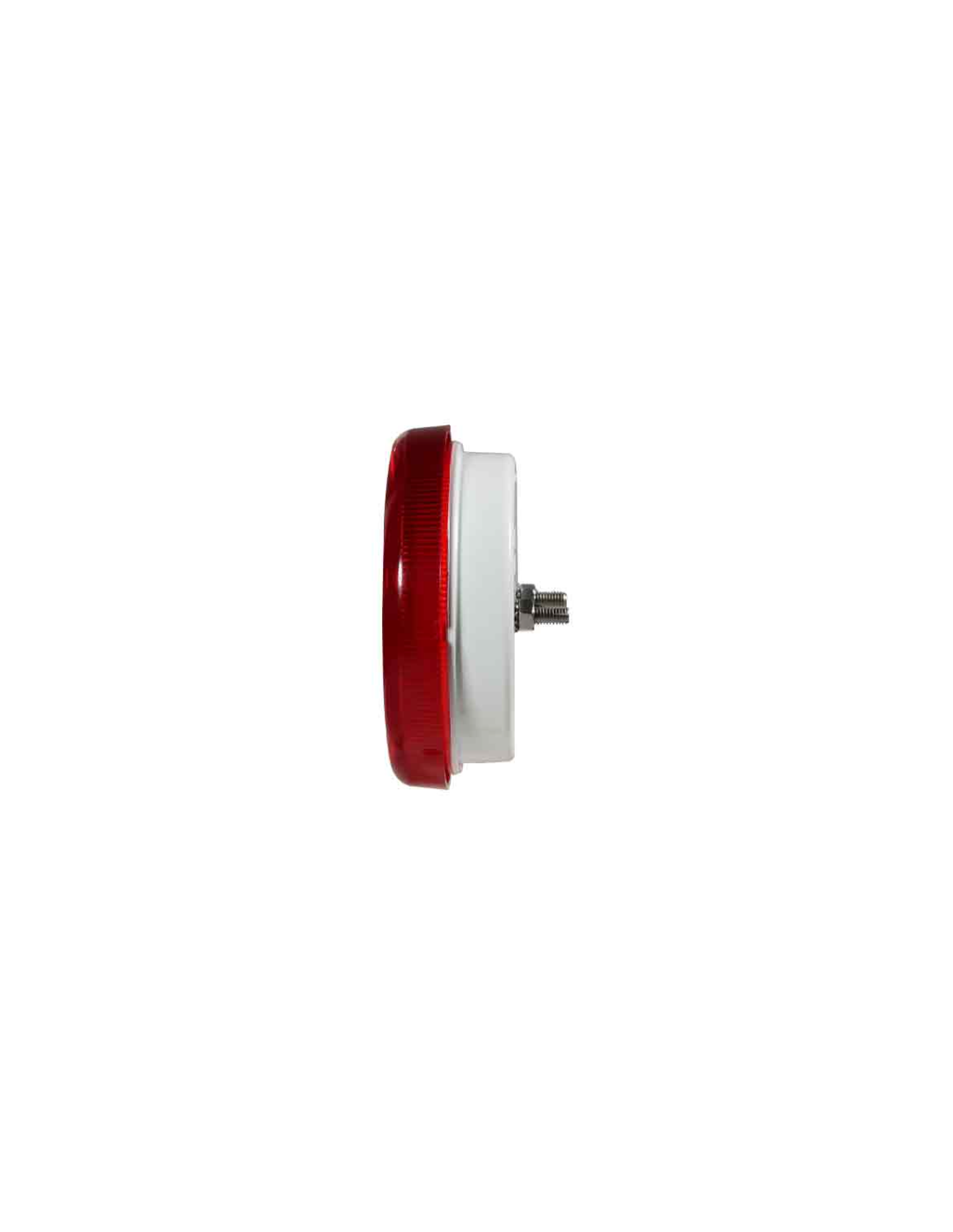

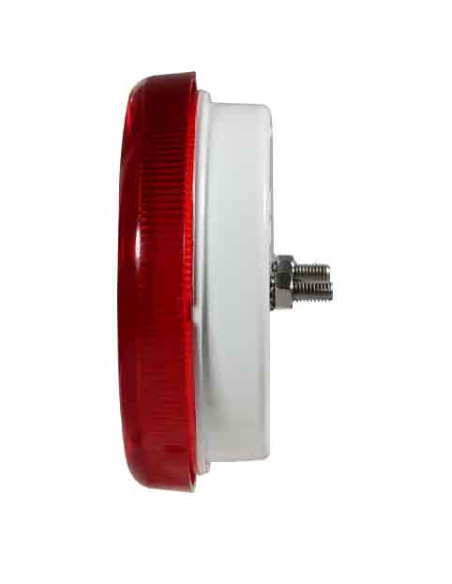

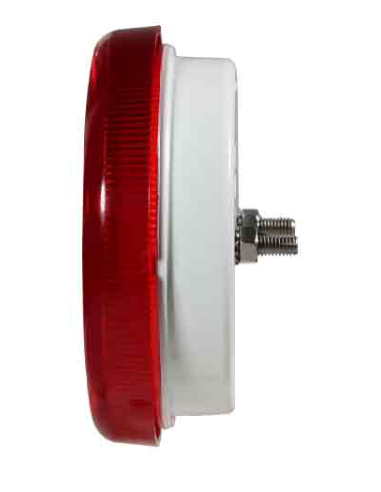

- Slim-profile housing (Thin Housing) — compact and modern design
- ECE-approved — compliant with European road signalling regulations
- IP67-rated — waterproof and dustproof protection
- IK04 impact resistance — withstands mechanical impacts
- Suitable for 12V to 24V DC systems — compatible with industrial and leisure vehicles
- 230 mm cable for direct connection without adapters

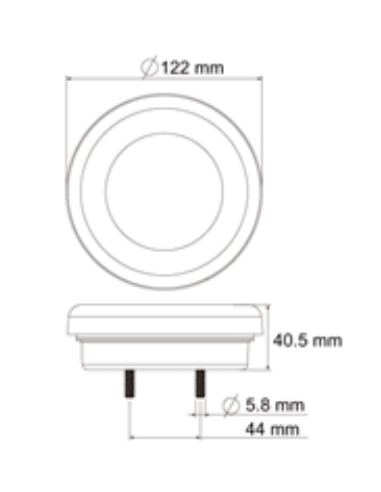

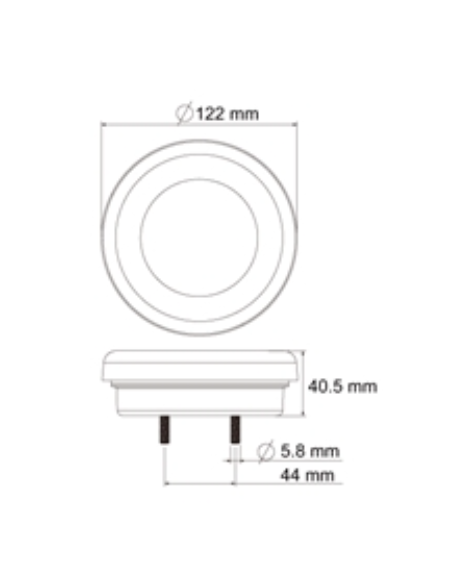

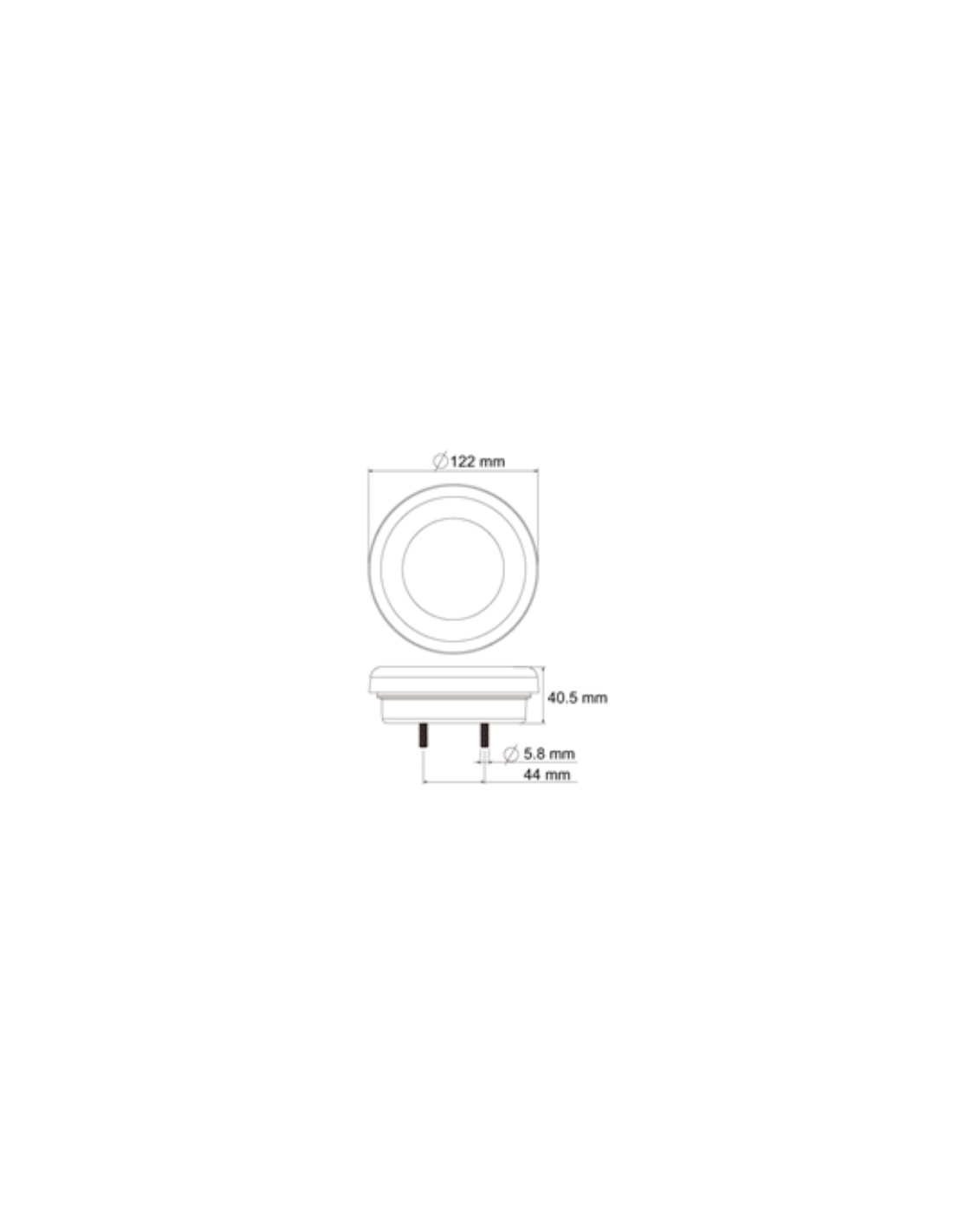

- 122 mm diameter — universal standard size
- Maintenance-free — long-life LED technology
Technical specifications
| Manufacturer reference |
Lucidity 26043-1 |
| Voltage |
12 / 24V DC |
| Protection rating |
IP67 |
| Impact resistance |
IK04 |
| Approval |
ECE (European type approval) |
| Mounting type |
Surface mounting |
| Connection |
230 mm cable |
| Diameter |
122 mm |
| Housing |
Slim profile (Thin Housing) |
| Functions |
Position (Neon-effect) · Stop · Indicator |
| Position power consumption |
12V = 1.5W · 24V = 3.0W |
| Stop power consumption |
12V = 2.4W · 24V = 4.8W |
ECE approval and road safety compliance — fully road legal
The Lucidity 26043-1 is ECE-approved, meeting all European legal requirements for rear signalling on industrial, agricultural and leisure vehicles. Its sealed construction with IP67 and IK04 ratings ensures reliable performance in demanding conditions such as rain, mud, dust and mechanical impacts commonly encountered in truck, trailer and agricultural applications.
It can be installed with full legal compliance for road use. As official Lucidity distributors in Spain, all products supplied are genuine factory units with full technical documentation and valid European approval.
Complementary model: 26043-2 for fog and reverse
For a complete and compliant rear lighting setup, two round units are required, one on each side:
- 26043-1 (this model): position + stop + indicator
- 26043-2: position + rear fog + reverse
Both models share the same slim-profile design and 122 mm diameter, ensuring symmetrical and aesthetic installation on trucks, trailers, caravans and motorhomes.
Frequently asked questions
Which vehicles are compatible with the 26043 round LED rear light?
The Lucidity 26043-1 is compatible with truck, trailer, semi-trailer, caravan and motorhome applications, as well as any vehicle operating on 12V or 24V DC systems (up to 36V). Its standard 122 mm diameter fits most circular mounting housings in industrial and leisure vehicles.
What is the difference between 26043-1 and 26043-2?
The 26043-1 includes position (Neon-effect), stop and indicator functions. The 26043-2 includes position, rear fog and reverse. For a fully compliant rear lighting configuration on a trailer, caravan or semi-trailer, both models are required, one fitted on each side.
Is it suitable for 24V truck systems?
Yes. The unit operates from 12V up to 36V DC without the need for any adapter or additional resistor. It is fully compatible with standard 24V truck electrical systems and 12V trailer or caravan installations.
What does “Neon-effect” mean?
The Neon-effect is an LED technology that produces a uniform and continuous position light without visible individual LED points. The result is a modern appearance and improved visibility in low-light conditions, particularly valued in leisure vehicles such as caravans and motorhomes.
What impact resistance does this rear light offer?
The Lucidity 26043-1 features an IK04 impact resistance rating, in addition to its IP67 sealing protection. This combination is designed for intensive use in industrial, agricultural and construction vehicles.

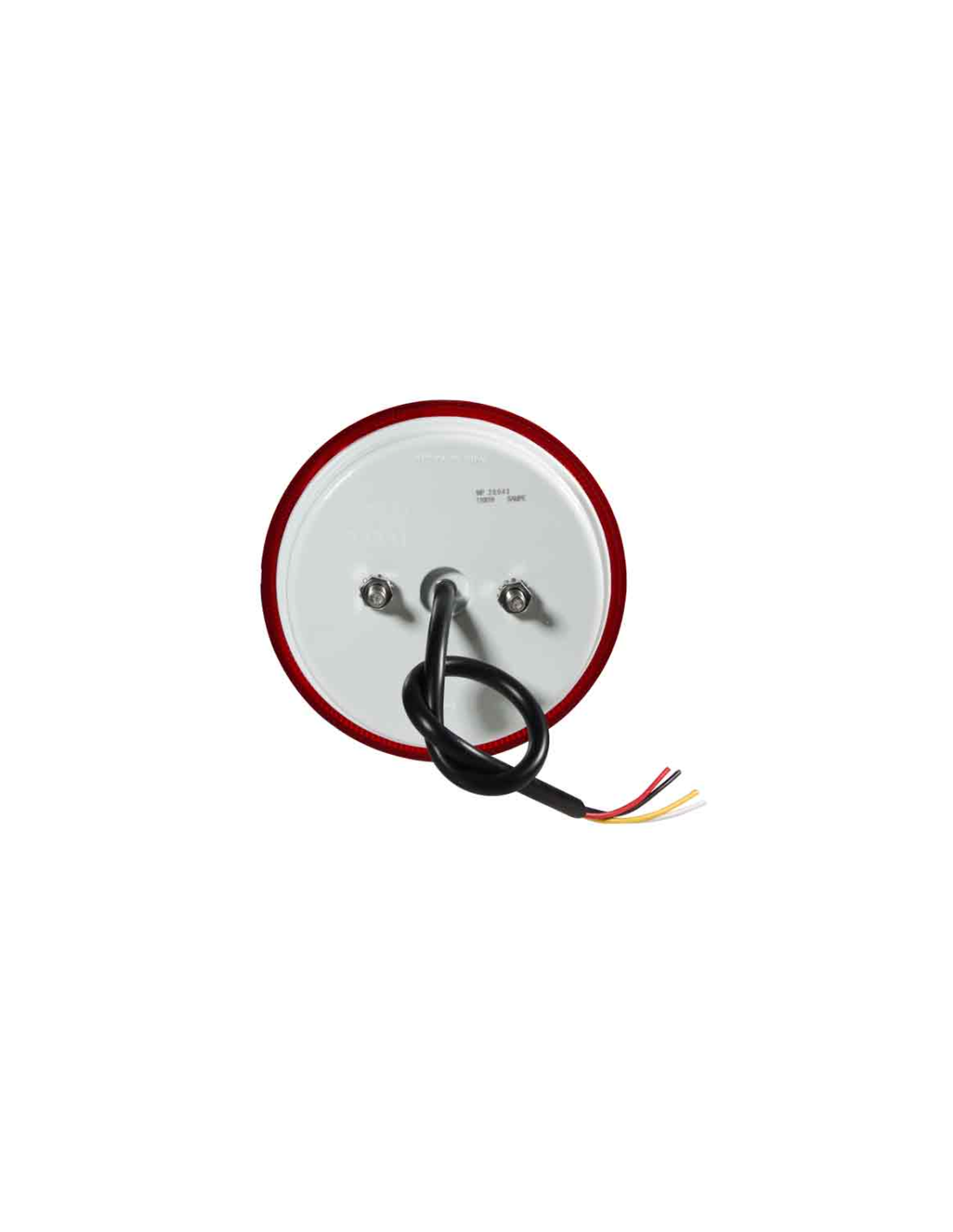

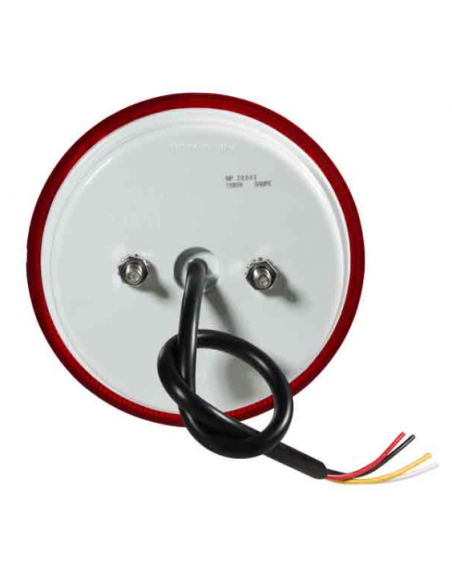

What cable and connection are included?
The unit includes a 230 mm cable for direct connection to the vehicle wiring. No additional adapter is required for installation.
