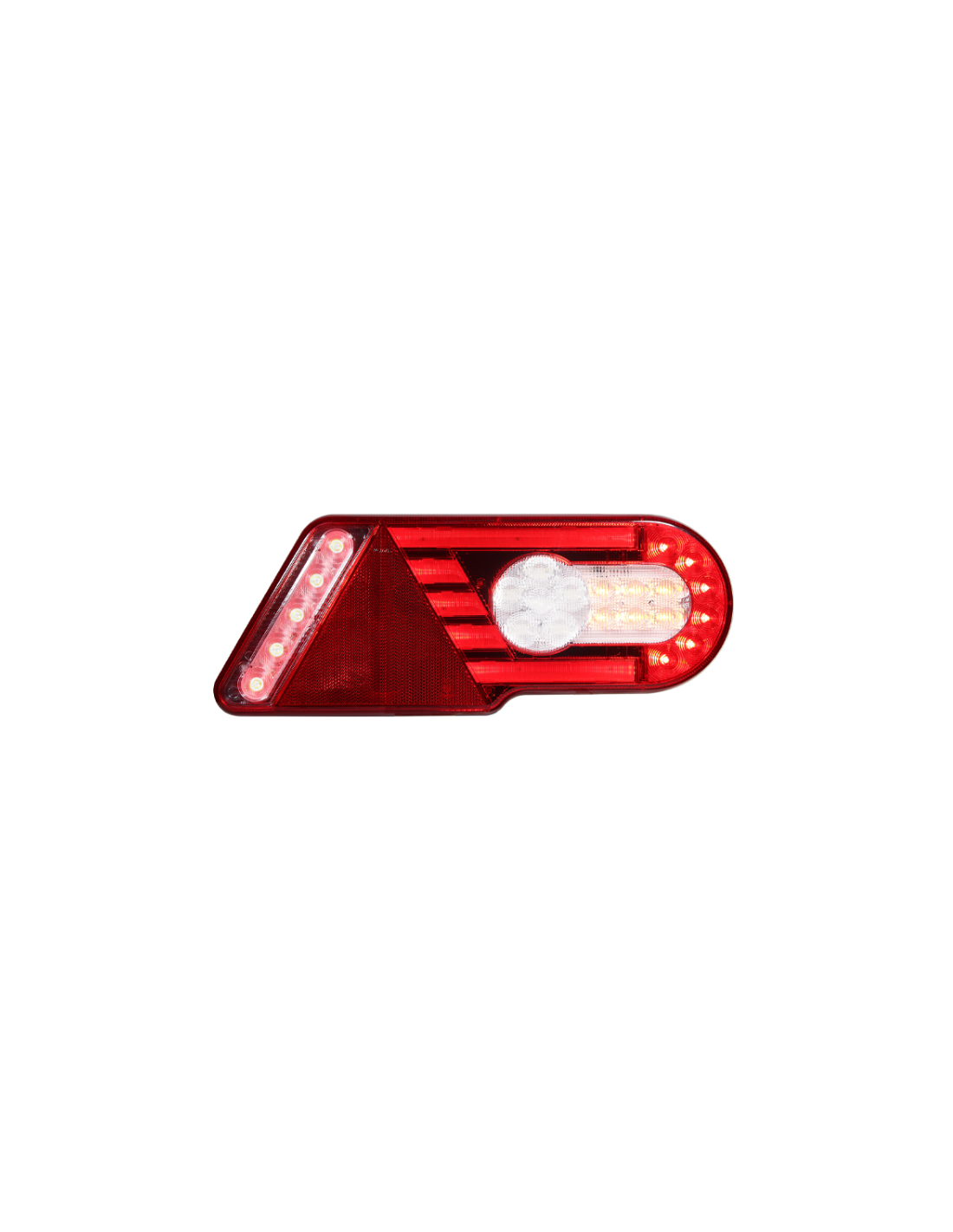

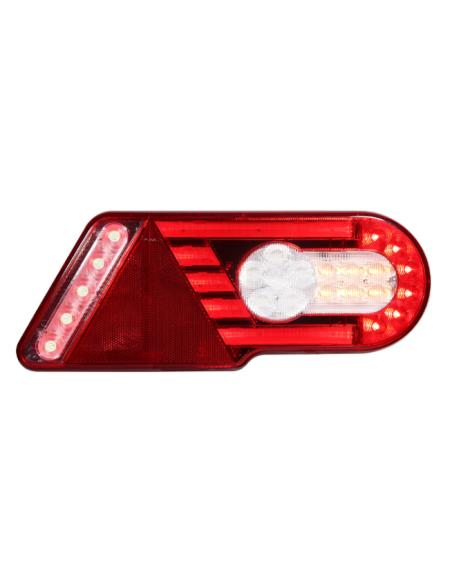

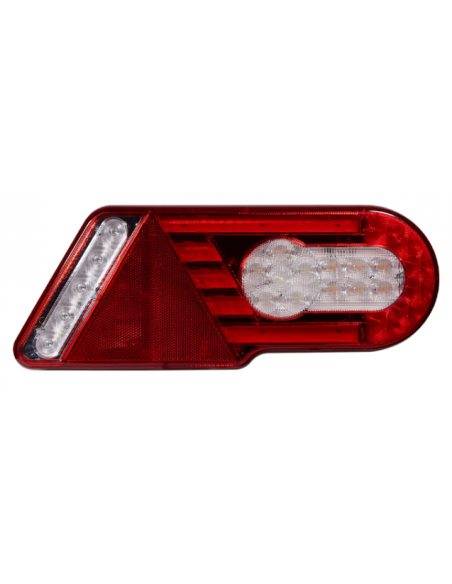

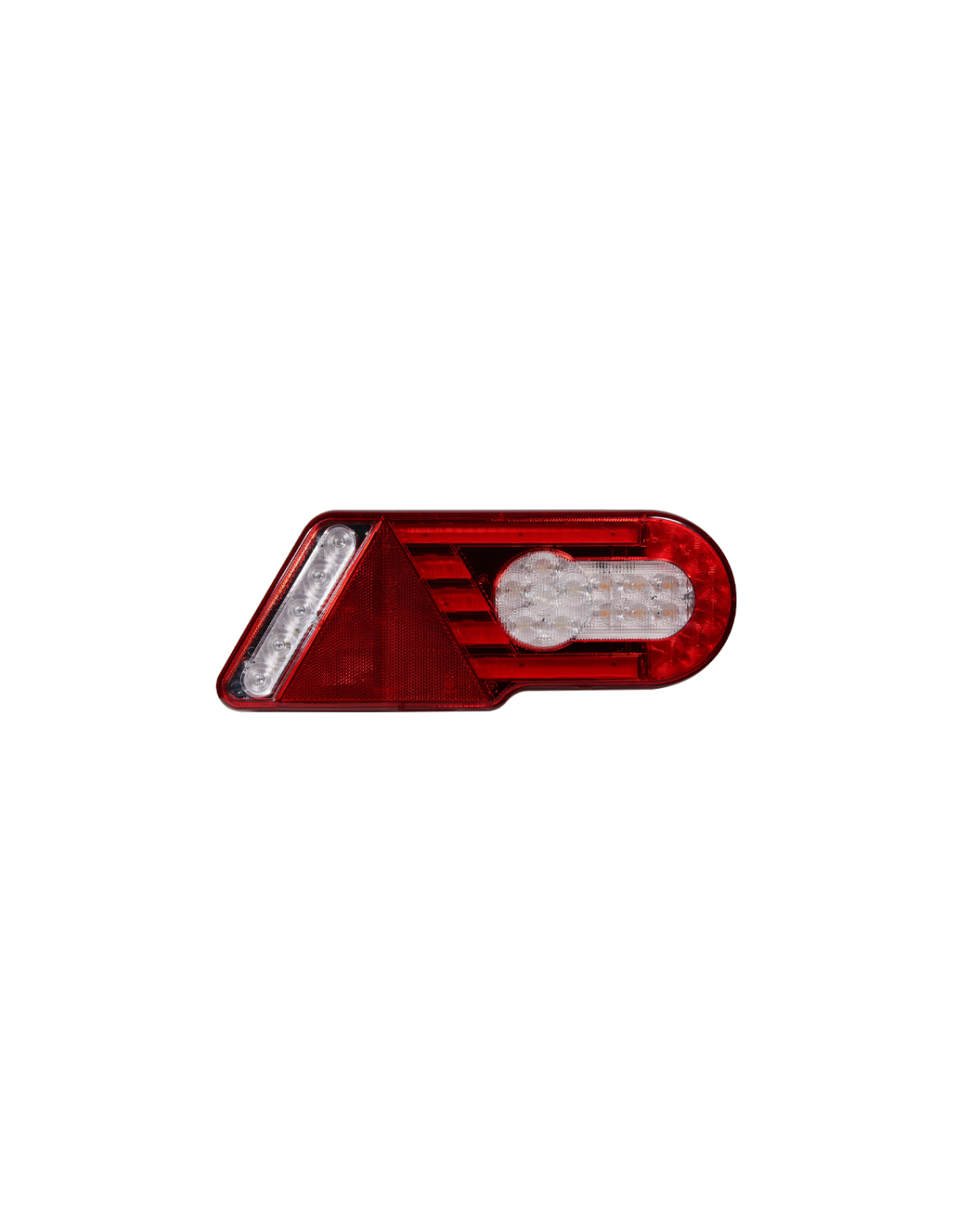

6-function LED rear light for professional signalling
This Glo Trac LED rear light is a 6-in-1 solution for rear signalling on vehicles requiring reliability for road and intensive use. It operates on 12V and 24V systems, integrates 6 functions in a single unit, and is designed for external installation thanks to its sealed construction.

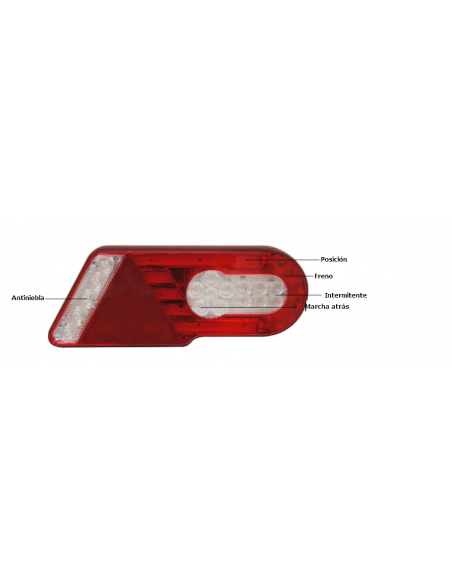

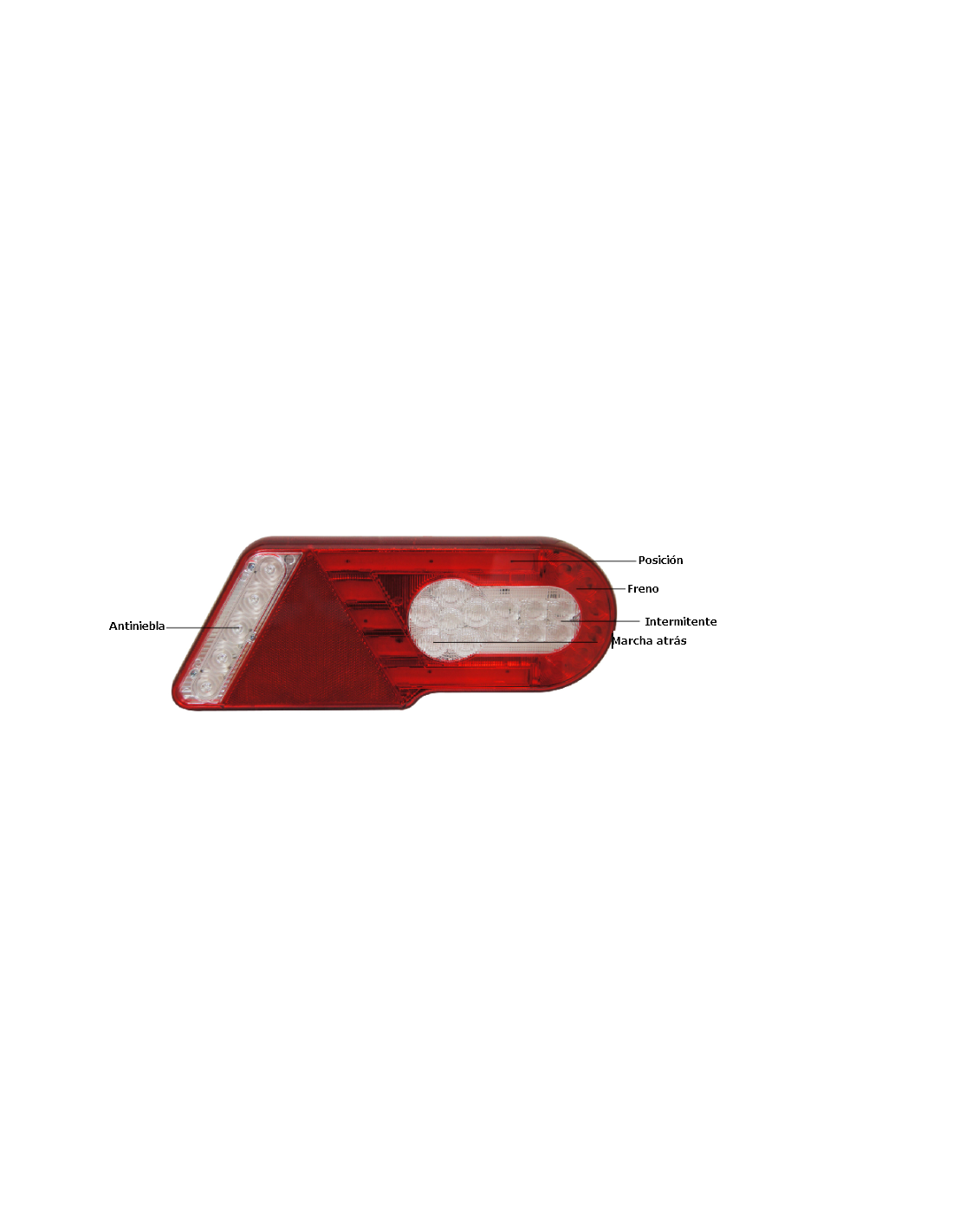

6 functions in one unit: complete rear signalling
- Position — permanent rear presence light
- Stop — high-intensity braking signal
- Indicator — ECE-compliant directional signalling
- Reverse — reversing manoeuvre warning light
- Rear fog — high-intensity rear light for low visibility conditions
- Reflective triangle — integrated standard-approved rear reflector, no additional reflector required
This rear light with integrated reflective triangle is especially recommended for truck trailers and large agricultural trailers, as it combines all mandatory rear functions in a single unit.
12V/24V compatibility and surface mounting
Designed for 12V or 24V installations, this rear light is suitable for both light and industrial vehicles. It features surface mounting and is supplied in right-hand version with a 2000 mm cable, ideal for easy installation on trailers and vehicle bodies.
E6 / EMC R10 approval — compliant with European regulations
The Lucidity 26032RH is E6 and EMC R10 approved, meeting European rear signalling standards for industrial and leisure vehicles. The integrated reflective triangle also complies with required dimensions and specifications, meaning a single unit covers both mandatory lighting and reflective functions. Suitable for installation on trucks, trailers, semi-trailers, caravans and motorhomes with full legal road compliance.
As official Lucidity distributors in Spain, all products supplied are genuine factory units with full technical documentation and valid European approvals.
Vehicle compatibility
- Truck — tractor unit, rigid truck and heavy commercial vehicle
- Trailer — truck trailer, tipper, platform and large agricultural trailer
- Semi-trailer — industrial and logistics applications
- Caravan and motorhome — leisure vehicles
- Tractor and agricultural vehicles
- Bus and coach
Compatible with any vehicle operating on 12V or 24V DC electrical systems. Fully compliant with European legal requirements for road use.

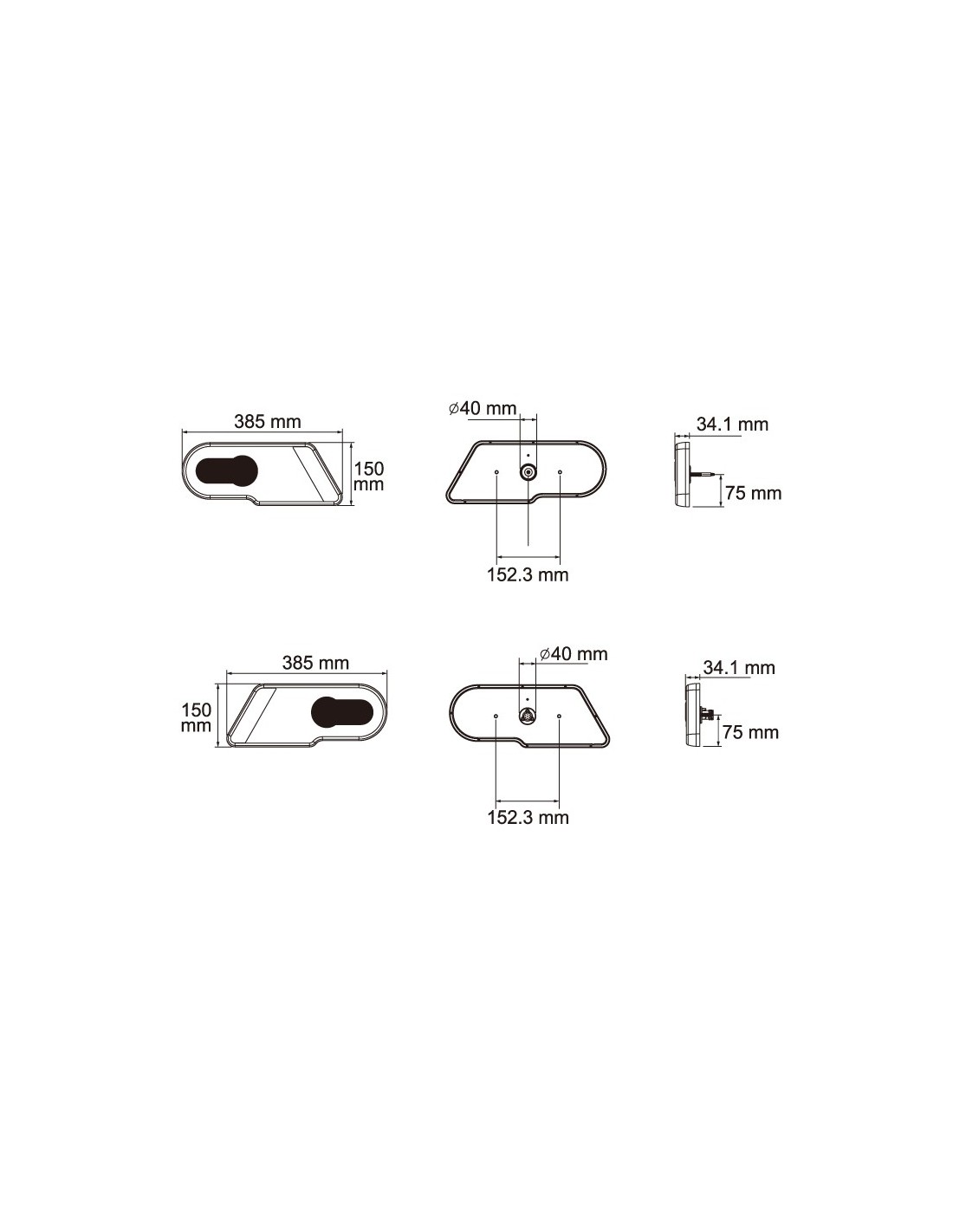

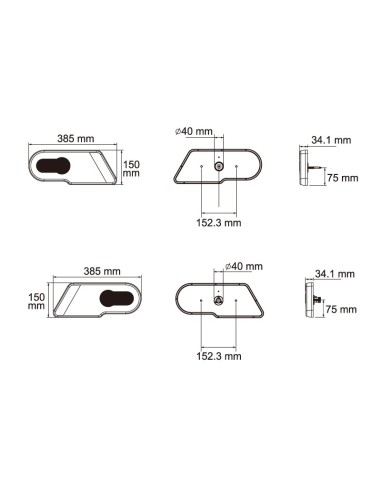

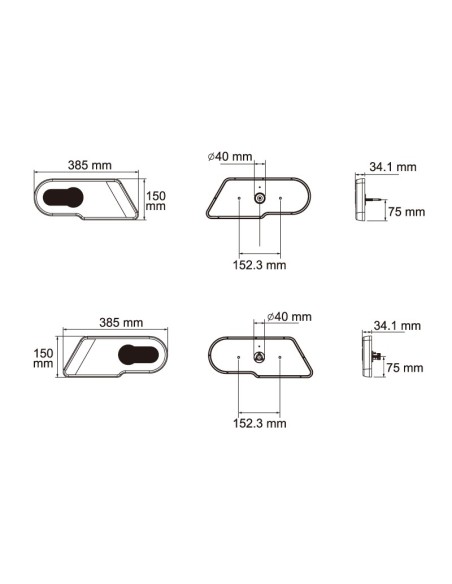

Ultra-slim 34 mm profile: enhanced impact protection
One of the key advantages of the Lucidity 26032RH is its 34 mm ultra-slim thickness. This low-profile design allows the unit to sit flush with the vehicle bumper, reducing the risk of damage in the event of impact. The robust housing material ensures durability while maintaining a practical and modern design, ideal for intensive road use.
Main features of the LED rear light with reflective triangle
- Integrated reflective triangle — no additional reflector required
- Ultra-slim 34 mm profile — flush mounting for improved protection
- Glo-Trac optical technology — enhanced recognition and road safety
- E6 / EMC R10 / ECE approved — fully compliant with European standards
- IP67 protection rating — waterproof and dustproof
- IK04 impact resistance — withstands mechanical shocks
- Suitable for 12V and 24V DC systems
- 2 metres of cable for direct installation
- Also available with 7-pin Tyco connector (reference 26032PRH)
- Maintenance-free — long-life LED technology
Technical specifications
| Manufacturer reference |
Lucidity 26032RH |
| Voltage |
12 / 24V DC |
| Protection rating |
IP67 |
| Impact resistance |
IK04 |
| Approval |
E6 · EMC R10 · ECE |
| Mounting type |
Surface mounting |
| Connection |
2000 mm cable |
| Thickness |
34 mm (ultra-slim profile) |
| Shape |
Rectangular |
| Side |
Right-hand |
| Technology |
Glo-Trac LED |
| Functions |
Position · Stop · Indicator · Reverse · Rear fog · Reflective triangle |
| Package contents |
LED rear light + 2000 mm cable + 2 nuts + 2 screws |
Available models in the 26032 range
This rear light is available in 4 references depending on side and connection type:
- 26032RH (this model): right-hand + 2000 mm cable
- 26032LH: left-hand + 2000 mm cable
- 26032PRH: right-hand + 7-pin Tyco connector
- 26032PLH: left-hand + 7-pin Tyco connector
For a complete rear installation, you require one right-hand and one left-hand unit of the same connection type.
Frequently asked questions
Is the reflective triangle integrated?
Yes. The reflective triangle is fully integrated into the unit and complies with European regulatory dimensions. No additional rear reflector is required.
Is it suitable for truck, trailer and caravan?
Yes. The Lucidity 26032RH is compatible with truck, trailer, semi-trailer, caravan and motorhome applications, as well as agricultural and construction vehicles. Suitable for 12V and 24V DC systems.
Why is the 34 mm slim profile an advantage?
A rear light that protrudes from the bumper is more vulnerable to impact during manoeuvres or loading operations. With only 34 mm thickness, the 26032RH remains protected by the vehicle structure, significantly reducing the risk of breakage.
Is it road legal?
Yes. It is E6 and EMC R10 approved, fully compliant with European rear signalling regulations for industrial and leisure vehicles.
Do I need one or two units?
For a complete installation, you need two units: the 26032RH (right-hand) and the 26032LH (left-hand), or their 7-pin connector equivalents.
What cable length is included?
The 26032RH includes 2 metres of cable for direct installation. If a connector version is required, refer to 26032PRH with 7-pin Tyco connector.
